Place of Origin: | CHIAN |
Brand Name: | OMRON |
Certification: | ROHS |
Model Number: | G6K-2F-Y-TR-DC3 |
Minimum Order Quantity: | 10PCS |
---|---|
Price: | NEGOTIABLE |
Packaging Details: | 1800PCS/REEL |
Delivery Time: | 2-3DAYS |
Payment Terms: | T/T, Western Union |
Supply Ability: | 5400PCS/WEEK |
Product Category: | Low Signal Relays - PCB | Type: | Miniature |
---|---|---|---|
Coil Voltage: | 3 VDC | Relay Contact Form: | 2 Form C (DPDT-NO, NC) |
Contact Rating: | 300 MA, 1 A | Contact Current Rating: | 1 A |
Maximum Switching Current: | 1 A | Coil Current: | 33 MA |
Coil Type: | Non-Latching | Power Consumption: | 100 MW |
Factory Packing Quantity: | 1800 |

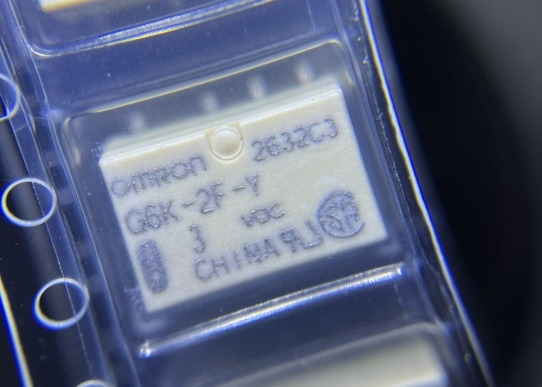

G6K-2F-Y-TR-DC3 OMRON Low Signal Relays
1.Surface Mounting Relay with the World’s Smallest Mounting Area
Subminiature model as small as 5.2 (H) × 6.5 (W) × 10 (L) mm is ideal for high-density mounting (G6K(U)-2F(-Y)).
• Low profile of 5.2 mm improves mounting efficiency (G6K(U)-2F(-Y))
• Light weight of 0.7 g contributes to higher speed mounting.
• Surface mounting terminal models incorporate a unique terminal structure with high infrared irradiation efficiency which allows the terminal temperature to rise easily when mounting the IRS, thus ensuring excellent soldering.
• Ensures a dielectric strength of 1,500 VAC and conforms to FCC Part 68 (i.e., withstanding an impulse withstand voltage of 1,500 V for 10 × 160 μs). -Y models offer an impulse withstand voltage of 2,500 V for 2 × 10 μs (conforms to Telcordia specifications) by optimizing the distance between coil and contacts.
• Standard model conforms to UL/CSA standards, certified by BSI (EN62368-1).
Models available with a 2.54-mm terminal pitch
.• Rated carry current: 2A
2.Application Examples
Telecommunication equipment
• Office automation machines
• Test and measurement equipment
• Building automation equipment
• Security equipment
• Industrial equipment
• Amusement equipment
• Home appliances
