Shenzhen Hongxinwei Technology Co., Ltd
To adopt new technology,to produce products of quality,to offer high-class service.
 |
| Place of Origin: | TAIWAN |
| Brand Name: | TI |
| Certification: | ROHS |
| Model Number: | SN65LVDS93AIDGGRQ1 |
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | 2000PCS/REEL |
| Delivery Time: | 2-3DAYS |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 8000PCS/WEEK |
| Product Category: | Serializers & Deserializers - Serdes | Minimum Operating Temperature: | - 40 C |
|---|---|---|---|
| Maximum Operating Temperature: | + 85 C | Qualification: | AEC-Q100 |
| Factory Packing Quantity: | 2000 |

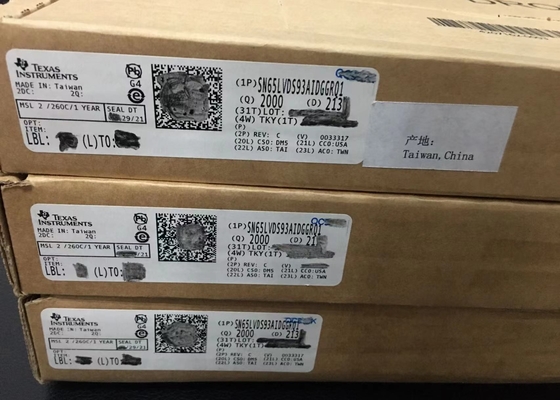

SN65LVDS93AIDGGRQ1 TI Serializers & Deserializers - Serdes 10MHz 135MHz 28-bit Flat Panel Display Link
1.Applications
• LCDDisplayPanelDriver
• UMPCand NetbookPC
• DigitalPictureFrame
3.Description
TheSN65LVDS93A-Q1FlatLink™transmittercontainsfour7-bitparallel-loadserial-outshiftregisters,a 7X clocksynthesizer,andfiveLow-VoltageDifferentialSignaling(LVDS)line driversin asingleintegratedcircuit.Thesefunctionsallow28 bitsof single-endedLVTTLdatato be synchronouslytransmittedoverfivebalanced-pairconductorsforreceiptby a compatiblereceiver,suchas theSN75LVDS94and LCDpanelswith integratedLVDSreceiver
4.Pin Configurationand Functions
5.
