Shenzhen Hongxinwei Technology Co., Ltd
To adopt new technology,to produce products of quality,to offer high-class service.
 |
| Place of Origin: | TAIWAN |
| Brand Name: | XILINX |
| Certification: | ROHS |
| Model Number: | XC7Z100-2FFG900I |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | 1PCS/BOX |
| Delivery Time: | 2-3DAYS |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000PCS/WEEK |
| Product Category: | SoC FPGA | Core: | ARM Cortex A9 |
|---|---|---|---|
| Number Of Cores: | 2 Core | Maximum Clock Frequency: | 766 MHz |
| L1 Cache Instruction Memory: | 2 X 32 KB | L1 Cache Data Memory: | 2 X 32 KB |
| Number Of Logic Elements: | 444000 LE | Number Of I/Os: | 362 I/O |
| Minimum Operating Temperature: | - 40 C | Maximum Operating Temperature: | + 100 C |
| Moisture Sensitive: | Yes | Number Of Logic Array Blocks - LABs: | 34675 LAB |
| Product Type: | Processors - Application Specialized |

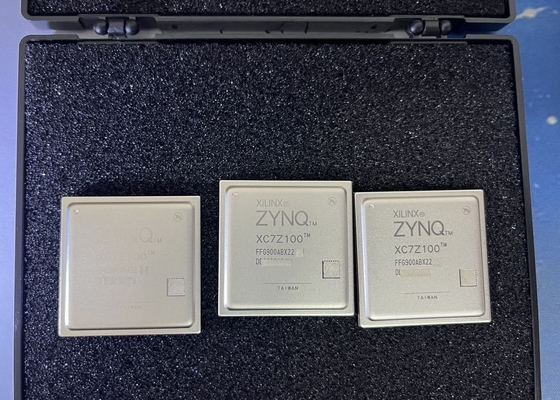

XC7Z100-2FFG900I XILINX Processors - Application Specialized
1.Introduction
The Zynq®-7000 SoCs are available in -3, -2, -2LI, -1, and -1LQ speed grades, with -3 having the highest performance. The -2LI devices operate at programmable logic (PL) VCCINT/VCCBRAM= 0.95V and are screened for lower maximum static power. The speed specification of a -2LI device is the same as that of a -2 device. The -1LQ devices operate at the same voltage and speed as the -1Q devices and are screened for lower power. Zynq-7000 device DC and AC characteristics are specified in commercial, extended, industrial, and expanded (Q-temp) temperature ranges. Except the operating temperature range or unless otherwise noted, all the DC and AC electrical parameters are the same for a particular speed grade (that is, the timing characteristics of a -1 speed grade industrial device are the same as for a -1 speed grade commercial device). However, only selected speed grades and/or devices are available in the commercial, extended, or industrial temperature ranges
