| MOQ: | 10PCS |
| Price: | NEGOTIABLE |
| Standard Packaging: | 540PCS/BOX |
| Delivery Period: | 2-3DAYS |
| Payment Method: | T/T, Western Union |
| Supply Capacity: | 2000PCS/WEEK |

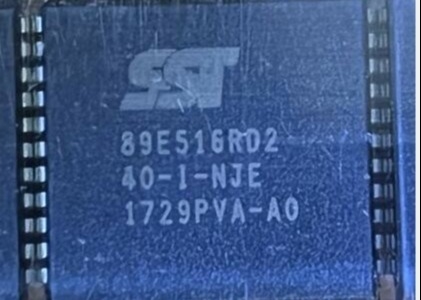

SST89E516RD2-40-I-NJE Microchip Technology 8-bit Microcontrollers - MCU 64KB+8KB 40MHz
1.Data Sheet
The SST89E516RDx and SST89V516RDx are members of the FlashFlex familyof 8-bit microcontroller products designed and manufactured with SST’s patentedand proprietary SuperFlash CMOS semiconductor process technology. The split-gate cell design and thick-oxide tunneling injector offer significant cost and reli-ability benefits for SST’s customers. The devices use the 8051 instruction set andare pin-for-pin compatible with standard 8051 microcontroller devices
2.Features
8-bit 8051-Compatible Microcontroller (MCU) with Embedded SuperFlash Memory
– Fully Software Compatible
– Development Toolset Compatible
– Pin-For-Pin Package Compatible
• SST89E516RD2 Operation
– 0 to 40 MHz at 5V
• SST89V516RD2 Operation
– 0 to 33 MHz at 3V
• 1 KByte Internal RAM
• Dual Block SuperFlash EEPROM
– 64 KByte primary block + 8 KByte secondary block(128-Byte sector size for both blocks)
– Individual Block Security Lock with SoftLock
– Concurrent Operation during In-Application Programming (IAP)
– Memory Overlay for Interrupt Support during IAP
• Support External Address Range up to 64 KByte of Program and Data Memory
• Three High-Current Drive Ports (16 mA each)
• Three 16-bit Timers/Counters
• Full-Duplex, Enhanced UART
– Framing Error Detection
– Automatic Address Recognition
• Ten Interrupt Sources at 4 Priority Levels
– Four External Interrupt Inputs
Programmable Watchdog Timer (WDT)
• Programmable Counter Array (PCA)
• Four 8-bit I/O Ports (32 I/O Pins) and One 4-bit Port
• Second DPTR register
• Low EMI Mode (Inhibit ALE)
• SPI Serial Interface
• Standard 12 Clocks per cycle, the device has an option to double the speed to 6 clocks per cycle.
• TTL- and CMOS-Compatible Logic Levels
• Brown-out Detection
• Low Power Modes
– Power-down Mode with External Interrupt Wake-up
– Idle Mode
• Temperature Ranges:
– Commercial (0°C to +70°C)
– Industrial (-40°C to +85°C)
• Packages Available
– 40-contact WQFN (Port 4 feature not available)
– 44-lead PLCC
– 40-pin PDIP (Port 4 feature not available)
– 44-lead TQFP
• All non-Pb (lead-free) devices are RoHS compliant
3.Product Description
The SST89E516RDx and SST89V516RDx are members of the FlashFlex family of 8-bit microcon-troller products designed and manufactured with SST’s patented and proprietary SuperFlash CMOSsemiconductor process technology.
The split-gate cell design and thick-oxide tunneling injector offersignificant cost and reliability benefits for SST’s customers. The devices use the 8051 instruction setand are pin-for-pin compatible with standard 8051 microcontroller devices.
The devices come with 72 KByte of on-chip flash EEPROM program memory which is partitioned into2 independent program memory blocks. The primary Block 0 occupies 64 KByte of internal programmemory space and the secondary Block 1 occupies 8 KByte of internal program memory space.
The 8-KByte secondary block can be mapped to the lowest location of the 64 KByte address space; itcan also be hidden from the program counter and used as an independent EEPROM-like data mem-ory.
In addition to the 72 KByte of EEPROM program memory on-chip and 1024 x8 bits of on-chip RAM,the devices can address up to 64 KByte of external program memory and up to 64 KByte of externalRAM.
4.Data Sheet
|
|
