| MOQ: | 1PCS |
| Price: | Negotiable |
| Standard Packaging: | 100PCS/BOX |
| Supply Capacity: | 200PCS |

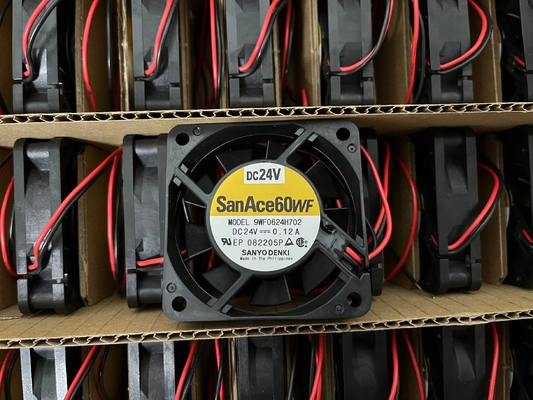

9WF0624H702 DC Fans DC Fan, 60x60x15mm, 24VDC, Oil Proof, O Sensor
Oil Proof Fan
60×60×15 mm
San Ace 60WF 9WF type
General Specifications
・ Material ………………………………………… Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)
・ Expected life …………………………………… See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage)
・ Motor protection function ………………… Locked rotor burnout protection, Reverse polarity protection For details, please refer to p. 547.
・ Dielectric strength …………………………… 50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
・ Insulation resistance ………………………… 10 MΩ or more with a 500 VDC megger (between lead wire conductors and frame)
・ Sound pressure level (SPL) ……………… At 1 m away from the air inlet
・ Storage temperature ……………………… -30 to +70˚C (Non-condensing)
・ Lead wire ……………………………………… Red Black Sensor Yellow
・ Mass ……………………………………………… 62 g
This fan can be used in environments with oil mist.*
* Environment where cutting oil creates oil mist. Conduct a product evaluation with the type of oil to be used.
Specifications
The models listed below have ribs and pulse sensors.
|
|
| MOQ: | 1PCS |
| Price: | Negotiable |
| Standard Packaging: | 100PCS/BOX |
| Supply Capacity: | 200PCS |
9WF0624H702 DC Fans DC Fan, 60x60x15mm, 24VDC, Oil Proof, O Sensor
Oil Proof Fan
60×60×15 mm
San Ace 60WF 9WF type
General Specifications
・ Material ………………………………………… Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)
・ Expected life …………………………………… See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage)
・ Motor protection function ………………… Locked rotor burnout protection, Reverse polarity protection For details, please refer to p. 547.
・ Dielectric strength …………………………… 50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
・ Insulation resistance ………………………… 10 MΩ or more with a 500 VDC megger (between lead wire conductors and frame)
・ Sound pressure level (SPL) ……………… At 1 m away from the air inlet
・ Storage temperature ……………………… -30 to +70˚C (Non-condensing)
・ Lead wire ……………………………………… Red Black Sensor Yellow
・ Mass ……………………………………………… 62 g
This fan can be used in environments with oil mist.*
* Environment where cutting oil creates oil mist. Conduct a product evaluation with the type of oil to be used.
Specifications
The models listed below have ribs and pulse sensors.
