| Place of Origin: | Japan |
| Brand Name: | Sanyo Denki |
| Certification: | ROHS |
| Model Number: | 109P0612H701 |
| Minimum Order Quantity: | 1BULK |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | 100BULK/BOX |
| Delivery Time: | 2-3DAYS |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50000BUIK |
| Features: | Tachometer | Type: | Tachometer Sensor |
|---|---|---|---|
| Height: | 60 Mm | Depth: | 15 Mm |
| Width: | 60 Mm | Operating Supply Voltage: | 12 VDC |
| Airflow: | 14.1 CFM (0.4 M3/min) | Speed: | 4100 RPM |
| Noise: | 32 DBA | Power Rating: | 1.08 W |
| Housing Material: | Plastic | Termination Style: | Wire Leads |
| Series: | 9P Type | Packaging: | Bulk |
| Pressure Type: | 3.8 MmAq | Current Type: | DC |
| Compliance: | CSA; TUV; UL | Factory Pack Quantity: | 100 |
| Product Type: | DC Fans | Unit Weight: | 2.116438 Oz |
| High Light: | Sanyo Denki DC Motor Fan,12V Tachometer DC Motor Fan,109P0612H701 Motor Cooling Fan |
||

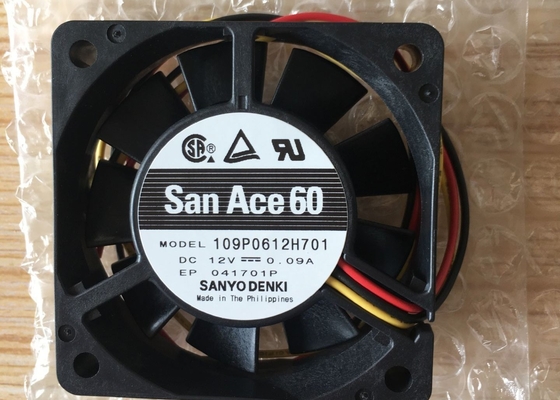

109P0612H701 DC Fans DC Fan, 60x15mm, 12VDC, Tachometer Sanyo Denki Motor Cooling Fan
1.General Specifications
Material Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1)
・ Expected life See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60 ̊C, rated voltage)
・ Dielectric strength 50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
・ Insulation resistance 10 MΩ or more with a 500 VDC megger (between lead wire conductors and frame)
・ Sound pressure level (SPL) At 1 m away from the air inlet
・ Storage temperature -30 to +70 ̊C (Non-condensing)
・ Lead wire Red Black or Blue Sensor Yellow
・ Mass 60 g
2.The models listed below have ribs and pulse sensors
3.
4.Dimensions (unit: mm)
5.Reference Dimensions of Mounting Holes and Vent Opening (unit: mm)
