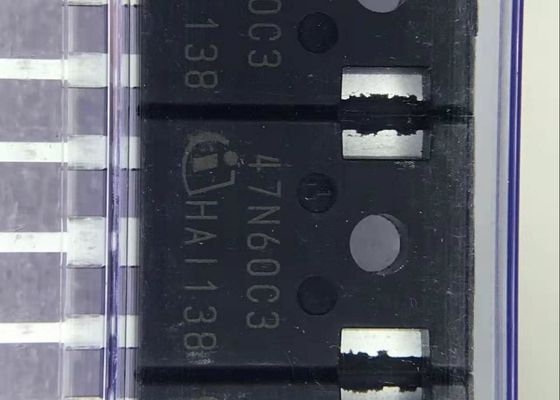

SPW47N60C3 MOSFET N-Ch 650V 47A TO247-3 CoolMOS C3
  • name
  • name
  • name

SPW47N60C3 MOSFET N-Ch 650V 47A TO247-3 CoolMOS C3

MOQ: 10PCS
Price: NEGOTIABLE
Standard Packaging: 240PCS/BOX
Delivery Period: 2-3DAYS
Payment Method: T/T, Western Union
Supply Capacity: 48000
Details Information
Product Description
Detail Information
Place of Origin
CHIAN
Brand Name
INFINEON
Certification
ROHS
Model Number
SPW47N60C3
Product Category:
MOSFET
Technology:
Si
Mounting Style:
Through Hole
Package / Case:
TO-247-3
Transistor Polarity:
N-Channel
Number Of Channels:
1 Channel
Vds - Drain-Source Breakdown Voltage:
600 V
Id - Continuous Drain Current:
47 A
Rds On - Drain-Source Resistance:
70 MOhms
Vgs - Gate-Source Voltage:
- 20 V, + 20 V
Vgs Th - Gate-Source Threshold Voltage:
2.1 V
Qg - Gate Charge:
252 NC
Minimum Operating Temperature:
- 55 C
Maximum Operating Temperature:
+ 150 C
Pd - Power Dissipation:
415 W
Configuration:
Single
Fall Time:
8 Ns
Height:
21.1 Mm
Length:
16.13 Mm
Product Type:
MOSFET
Rise Time:
27 Ns
Transistor Type:
1 N-Channel
Typical Turn-Off Delay Time:
111 Ns
Typical Turn-On Delay Time:
18 Ns
Width:
5.21 Mm
Factory Pack Quantity:
240
Product Description

               SPW47N60C3 MOSFET N-Ch 650V 47A TO247-3 CoolMOS C3



1.Feature

Ultra low gate charge

Periodic avalanche rated

Extreme dv/dt rated

Ultra low effective capacitances

2.Definition of diodes switching characteristics

SPW47N60C3 MOSFET N-Ch 650V 47A TO247-3 CoolMOS C3 0
