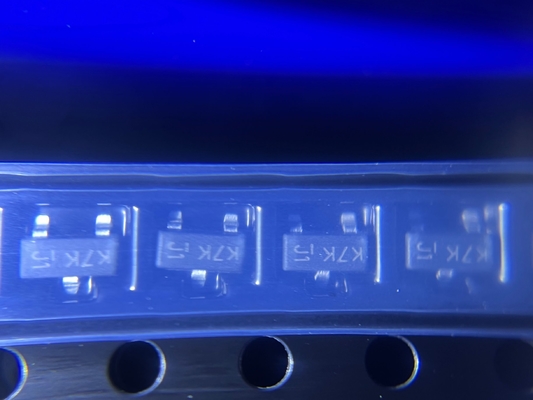

2N7002K-7 Motor Control , Power Management Function , Backlight

2N7002K-7 Motor Control , Power Management Function , Backlight

MOQ: 10PCS
Price: NEGOTIABLE
Standard Packaging: 3000PCS/REEL
Delivery Period: 2-3DAYS
Payment Method: T/T, Western Union
Supply Capacity: 10000PCS/WEEK
Detail Information
Place of Origin
CHIAN
Brand Name
Diodes Incorporated
Certification
ROHS
Model Number
2N7002K-7
Product Category:
MOSFET
Technology:
Si
Mounting Style:
SMD/SMT
Package / Case:
SOT-23-3
Transistor Polarity:
N-Channel
Number Of Channels:
1 Channel
Vds - Drain-Source Breakdown Voltage::
60V
Id - Continuous Drain Current:
380 MA
Rds On - Drain-Source Resistance::
2 Ohms
Vgs - Gate-Source Voltage:
- 20 V, + 20 V
Vgs Th - Gate-Source Threshold Voltage::
1V
Qg - Gate Charge:
300 PC
Minimum Operating Temperature::
- 55 C
Maximum Operating Temperature:
+ 150 C
Pd - Power Dissipation:
540 MW
Channel Mode:
Enhancement
Configuration:
Single
Fall Time:
9.9 Ns
Height:
1 Mm
Length:
2.9 Mm
Rise Time:
3.4 Ns
Typical Turn-Off Delay Time:
15.7 Ns
Typical Turn-On Delay Time:
3.9 Ns
Width:
1.3 Mm
Factory Packing Quantity:
3000
Product Description

2N7002K-7 This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high efficiency power management applications. Motor Control ,Power Management Functions ,Backlighting



1.Features and Benefits

Low On-Resistance
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
ESD Protected up to 2kV
Totally Lead-Free & Fully RoHS Compliant(Notes1& 2)
Halogen and Antimony Free. “Green” Device (Note3)
For automotive applications requiring specific change control (i.e.: parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities)



2.Mechanical Data

Case: SOT23
Case Material: Molded Plastic, “Green” MoldingCompound. UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish
Matte Tin Annealed over Alloy 42 Leadframe. Solderable per MIL-STD-202, Method 208
Weight: 0.008 grams (Approximate)
