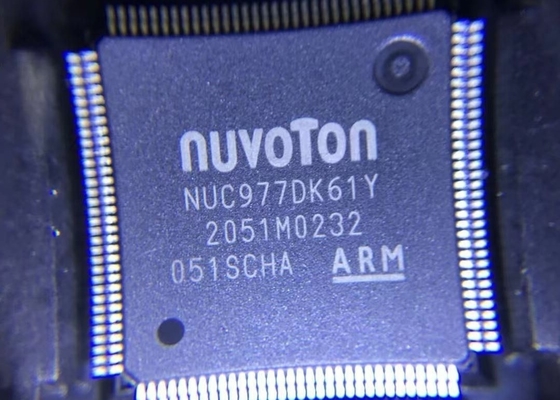

NUC977DK61Y NUVOTON Microprocessors Integrated Circuits ARM926EJ-S HMI IoT Gateway
  • name
  • name
  • name

NUC977DK61Y NUVOTON Microprocessors Integrated Circuits ARM926EJ-S HMI IoT Gateway

MOQ: 10PCS
Price: NEGOTIABLE
Standard Packaging: 960PCS/BOX
Delivery Period: 2-3DAYS
Payment Method: T/T, Western Union
Supply Capacity: 1920PCS/WEEK
Details Information
Product Description
Detail Information
Place of Origin
CHIAN
Brand Name
NUVOTON
Certification
ROHS
Model Number
NUC977DK61Y
Operating Frequency:
300 MHz
Supports:
RGB565 Interface
Resolution:
1024 X 768
Graphic Engine:
20
Max Resolution Up To:
3M Pixels
DDR Memory:
Built-in 64 MB
Highlight:

NUC977DK61Y Microprocessors Integrated Circuits

,

NUVOTON Microprocessors Integrated Circuits

,

ARM926EJ-S HMI IoT Gateway

Product Description

 NUC977DK61Y NUVOTON Microprocessorstargets Industrial Control, HMI, IoT Gateway and Smart Home Gateway/Router applications



1.The NUC977DK61Y with the ARM926EJ-S core can operate at up to 300 MHz . It offers 128-pin LQFP packages stacked with 64 MB DDR-II Memory to reduce PCB size and EMI issues. Rich peripherals include 8 sets of UART , one set Ethernet, SDIO/eMMC interface, NAND Flash interface, LCD controller, ISO-7816 interface and High-Speed USB 2.0 host /device controller to allow more flexibility in designs. The NUC977DK61Y also integrates the crypto engine which provides hardware acceleration for AES, triple DES and SHA function. It supports industrial temperature from - 40 ℃ to 85 ℃ and targets Industrial Control, HMI, IoT Gateway and Smart Home Gateway/Router applications

2.Target Application:

HMI, industrial automation, industrial control, robotics, EV charging station, smart home, PLCs ( Programmable Logic Controller ) , RTUs, renewable energy gateways

3.Overview

Core
- ARM926EJ-S core
- Operates at up to 300 MHz
- 16 KB I-cache / 16 KB D-cache
DDR Memory
- Built-in 64 MB DDR II Memory

• USB 2.0 High Speed Host / Device
- Up to two USB ports: one USB Host and one USB Host / Device

• System Boot
- Boot from SPI Flash, NAND Flash, eMMC Flash or USB Device

• Crypto
- DES / 3DES, AES, SHA / HMAC / PRNG

• 10/100M Ethernet with RMII

• LCD Controller
- Supports RGB565 interface
- Max. resolution: 1024 x 768
- 2D Graphic Engine

• Video Input Interface
- Supports CCIR656 / CCIR601 interface
- Max resolution up to 3M pixels

• Dual SD Host Controller
- Supports SD / SDIO / eMMC

• Peripheral
- Supports SPI / I²C / PWM / ISO-7816
4.Q1. What is your terms of packing?A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your MOQ?A:We provide you small MOQ for each item, it depends your specific order!
Q3. Do you test or check all your goods before delivery?A: Yes, we have 100% test and check all goods before delivery.
Q4: How do you make our business long-term and good relationship?We keep good quality and competitive price to ensure our customers benefit ;We respect every customer as our friend and we sincerely do business and make friends with them,It's not something that can be replaced.
Q5: How to contact us?
A: Send your inquiry details in the below,Click "Send"Now!!!
NUC977DK61Y NUVOTON Microprocessors Integrated Circuits ARM926EJ-S HMI IoT Gateway 0
