Place of Origin: | CHINA |
Brand Name: | ON Semiconductor |
Certification: | ROHS |
Model Number: | ESD7241N2T5G |
Minimum Order Quantity: | 10PCS |
---|---|
Price: | NEGOTIABLE |
Packaging Details: | 8000PCS/REEL |
Delivery Time: | 2-3DAYS |
Payment Terms: | T/T, Western Union |
Supply Ability: | 32000PCS/WEEK |
Product Category: | ESD Suppressors / TVS Diodes | Polarity: | Bidirectional |
---|---|---|---|
Working Voltage: | 24 V | Number Of Channels: | 1 Channel |
Package / Case: | X2DFN-2 | Breakdown Voltage: | 24.3 V |
Clamping Voltage: | 48 V | Vesd - Voltage ESD Contact: | 28 KV |
Cd - Diode Capacitance: | 1 PF | Ipp - Peak Pulse Current: | 16 A |
Minimum Operating Temperature: | - 55 C | Maximum Operating Temperature: | + 150 C |
Pd - Power Dissipation: | 300 MW | Qualification: | AEC-Q100 |
Factory Pack Quantity: | 8000 | ||
High Light: | Bidirectional Polarity ESD Suppressors,ESD7241N2T5G ESD Suppressors,24V VRWM ESD TVS Diodes |

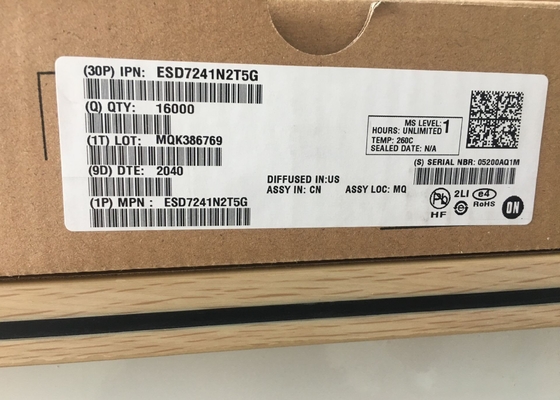

ESD7241N2T5G ESD Suppressors / TVS Diodes 24V VRWM ESD PROTECTION
1.The ESD7241 is designed to protect voltage sensitive componentsthat require ultra−low capacitance from ESD and transient voltageevents. It has industry leading capacitance linearity over voltagemaking it ideal for RF applications. This capacitance linearitycombined with the extremely small package and low insertion lossmakes this part well suited for use in antenna line applications forwireless handsets and terminals.
2.Features
•Industry Leading Capacitance Linearity Over Voltage
•Ultra−Low Capacitance: < 1.0 pF Max
•Insertion Loss: 0.15 dB at 1 GHz; 0.60 dB at 3 GHz
•Low Leakage: < 0.5 uA
•Protection for the following IEC Standards:
♦IEC61000−4−2 (ESD): Level 4 ±28 kV Contact
♦IEC61000−4−4 (EFT): 40 A −5/50 ns
♦IEC61000−4−5 (Lightning): 2.5 A (8/20 s)
•SZESD7241MXWT5G − Wettable Flank Package for OptimalAutomated Optical Inspection (AOI)
•SZ Prefix for Automotive and Other Applications Requiring UniqueSite and Control Change Requirements; AEC−Q101 Qualified andPPAP Capable
•These Devices are Pb−Free, Halogen Free/BFR Free and are RoHSCompliant
3.Typical Applications
•RF Signal ESD Protection
•Near Field Communications
•USB 3.x Vbus Protection
4.
