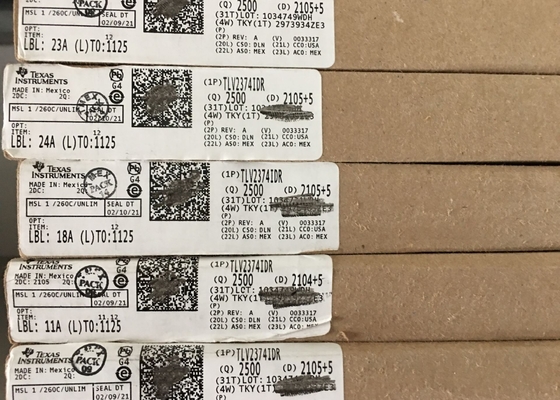

SOIC 2.7V 3MHz MSOP Electronic Integrated Circuits TLV2374IDP

TLV2374IDP WhiteGoods HandheldTestEquipment PortableBloodGlucoseSystems RemoteSensing ActiveFilters Industria

1.Features
• Rail-to-RailInputand Output
• WideBandwidth:3 MHz
• HighSlewRate:2.4 V/μs
• SupplyVoltageRange:2.7 V to 16 V
• SupplyCurrent:550μA/Channel
• Low-PowerShutdownMode– IDD(SHDN): 25μA/Channel
• InputNoiseVoltage:39 nV/√Hz
InputBiasCurrent:1 pA
SpecifiedTemperatureRange:–−40°C to +125°C (IndustrialGrade)

2.Applications
• WhiteGoods
• HandheldTestEquipment
• PortableBloodGlucose Systems
• RemoteSensing
• ActiveFilters
• IndustrialAutomation
• Battery-PoweredElectronics

3.Description
TheTLV237x single-supply operational amplifiers providerail-to-railinputandoutputcapability.TheTLV237xtakesthe minimumoperatingsupplyvoltagedownto 2.7V overtheextendedindustrialtemperaturerangewhileaddingthe rail-to-railoutputswingfeature.TheTLV237xalsoprovides3-MHzbandwidthfromonly550μA. Themaximumrecommendedsupplyvoltageis 16 V, whichallowsthe devicesto be operatedfrom(±8-V suppliesdownto ±1.35V) a varietyof rechargeablecells.
TheCMOS inputsenableusein high-impedancesensorinterfaces,withthe lowervoltageoperationmakingan idealalternativefor the TLC227xinbattery-poweredapplications.Therail-to-railinputstagefurtherincreasesits versatility.The TLV237xisthe seventhmemberof a rapidlygrowingnumberofRRIOproductsavailablefromTI, and it is the first toallowoperationup to 16-Vrailswithgoodacperformance.
All membersare availablein PDIPand SOIC with thesinglesin the smallSOT-23package,dualsin the MSOP,and quadsin the TSSOPpackage.
The 2.7-Voperationmakesthe TLV 237xcompatiblewith Li-Ionpoweredsystemsand the operatingsupplyvoltagerangeof manymicro-powermicrocontrollersavailabletodayincludingTI’s MSP430
