| Place of Origin: | TAIWAN |
| Brand Name: | Ricoh Electronics |
| Certification: | ROHS |
| Model Number: | R5436T507BA-E2-FF |
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | 3000PCS/REEL |
| Delivery Time: | 2-3DAYS |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 12000PCS/WEEK |
| Product: | Battery Protection | Battery Type: | Li-Ion, Li-Polymer |
|---|---|---|---|
| Operating Supply Voltage: | 2.5 V To 25 V | Maximum Operating Temperature: | + 85 C |
| Minimum Operating Temperature: | - 40 C | Operating Supply Current: | 12uA |
| Factory Pack Quantity: | 3000 | ||
| High Light: | 30V Li Polymer Battery Protection IC,ROHS Battery Protection IC,12uA Battery Management IC |
||

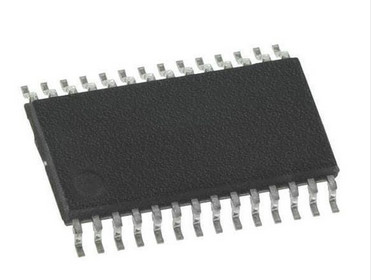

R5436T507BA-E2-FF Battery Management 3 to 5 Serial Cell Li-Ion or Li-Polymer Battery Protection IC
1.OUTLINE
The R5436T is an overcharge, overdischarge and overcurrent protection IC for Li-ion or Li-polymer secondary battery. Overcharge, Overdischarge, Charge Overcurrent and Discharge Overcurrent for 3 to 5 serial cells can be detected. By cascade connection using the R5436T, it is also possible to protect 6-serial or more cells rechargeable battery pack. The R5436T provides a cell-balancing function to equalize imbalance between cells, and it provides an open-wire detection to detect a broken wire between a battery and the circuit board.The open-wire detection is optionally selectable
2.FEATURES
High Voltage Tolerant Process
Absolute Maximum Ratings 30V
Low Supply Current
Normal operation with using 5 cells Typ. 12.0 μA
Standby Typ. 6.0 μA
3.APPLICATIONS
Li-ion/Li-polymer battery protection for electric tool and electric bicycle, etc.
