| MOQ: | 10PCS |
| Price: | NEGOTIABLE |
| Standard Packaging: | 2500PCS/REEL |
| Delivery Period: | 2-3DAYS |
| Payment Method: | T/T, Western Union |
| Supply Capacity: | 10000PCS/WEEK |

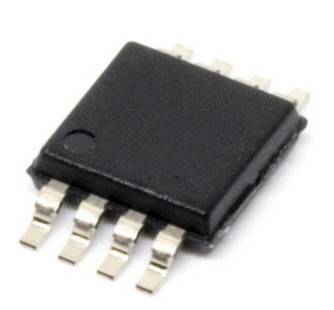

MCP6542T-I/MS Analog Comparators Dual 1.6V Push/Pull
1.Features
:• Low Quiescent Current: 600 nA/Comparator (typ.)
• Rail-to-Rail Input: VSS - 0.3V to VDD + 0.3V
• CMOS/TTL-Compatible Output
• Propagation Delay: 4 μs (typical, 100 mV Overdrive)
• Wide Supply Voltage Range: 1.6V to 5.5V
• Available in Single, Dual and Quad
• Single Available in SOT-23-5, SC-70-5 * Packages
• Chip Select (CS) with MCP6543
• Low Switching Current
• Internal Hysteresis: 3.3 mV (typ.)
• Temperature Ranges:- Industrial: -40°C to +85°C- Extended: -40°C to +125°C
2.Typical Applications:
• Laptop Computers
• Mobile Phones
• Metering Systems
• Hand-held Electronics
• RC Timers
• Alarm and Monitoring Circuits
• Windowed Comparators
• Multivibrators
3.Description:
The Microchip Technology Inc. MCP6541/1R/1U/2/3/4family of comparators is offered in single (MCP6541, MCP6541R, MCP6541U), single with Chip Select (CS)(MCP6543), dual (MCP6542) and quad (MCP6544)configurations. The outputs are push-pull (CMOS/TTL-compatible) and are capable of driving heavy DC orcapacitive loads.
These comparators are optimized for low-power,single-supply operation with greater than rail-to-railinput operation. The push-pull output of theMCP6541/1R/1U/2/3/4 family supports rail-to-rail out-put swing and interfaces with TTL/CMOS logic. Theinternal input hysteresis eliminates output switchingdue to internal input noise voltage, reducing currentdraw. The output limits supply current surges anddynamic power consumption while switching. Thisproduct family operates with a single-supply voltage aslow as 1.6V and draws less than 1 μA/comparator ofquiescent current.
The related MCP6546/7/8/9 family of comparators fromMicrochip has an open-drain output. Used with a pull-up resistor, these devices can be used as level-shiftersfor any desired voltage up to 10V and in wired-ORlogic.
4.Why choose us?
100% new and originao with Advantage price
High efficiency
Fast Delivery
Professional team service
10 Years Experience Electronic components
Electronic components Agent
Advantage logistic discount
Excellent After-sales Service
|
|
