15MBd 2Ch 5mA High Speed Optocouplers HCPL-063L-500E

15MBd 2Ch 5mA High Speed Optocouplers HCPL-063L-500E

MOQ: 10PCS
Price: NEGOTIABLE

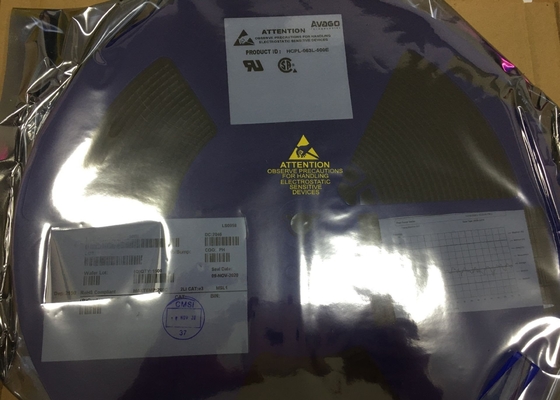

Standard Packaging: 1500PCS/REEL
Delivery Period: 2-3DAYS
Payment Method: T/T, Western Union
Supply Capacity: 15000PCS/WEEK
Detail Information
Place of Origin
TAIWAN
Brand Name
AVAGO
Certification
ROHS
Model Number
HCPL-063L-500E
Product Category:
High Speed Optocouplers
Data Rate:
15 Mb/s
Number Of Channels:
2 Channel
Output Type:
Open Collector
Isolation Voltage:
3750 Vrms
Vf - Forward Voltage:
1.75 V
If - Forward Current:
10 MA
Vr - Reverse Voltage:
5 V
Pd - Power Dissipation:
60 MW
Minimum Operating Temperature:
- 40 C
Maximum Operating Temperature:
+ 85 C
Height:
3.17 Mm
Length:
5.08 Mm
Output Current:
50 MA
Width:
3.94 Mm
Fall Time:
20 Ns
Rise Time:
45 Ns
Factory Pack Quantity:
1500
Highlight:

2Ch High Speed Optocouplers

,

5mA High Speed Optocouplers

,

HCPL-063L-500E

Product Description

      HCPL-063L-500E High Speed Optocouplers 15MBd 2Ch 5mA

1.Description

The HCPL-260L/060L/263L/063L are optically coupled gates that combine a GaAsP light emitting diode andan integrated high gain photo detector. An enable in-put allows the detector to be strobed. The output of the detector IC is an open collector Schottky-clamped transistor. The internal shield provides a guaranteed common mode transient immunity specification of15 kV/μs at 3.3V.

This unique design provides maximum AC and DC circuit isolation while achieving LVTTL/LVCMOS compati-bili-ty. The optocoupler AC and DC operational parameters are guaranteed from –40 °C to +85 °C allowing trouble-free system performance.
These optocouplers are suitable for high speed logic interfacing, input/output buffering, as line receivers in environments that conventional line receivers cannot tolerate and are recommended for use in extremely high ground or induced noise environments

2.Functional Diagram

15MBd 2Ch 5mA High Speed Optocouplers HCPL-063L-500E 0

3.Features
• 3.3V/5V Dual Supply Voltages
• Low power consumption
• 15 kV/μs minimum Common Mode Rejection (CMR) at VCM = 1000 V
• High speed: 15 MBd typical
• LVTTL/LVCMOS compatible
• Low input current capability: 5 mA
• Guaranteed AC and DC performance over tempera-ture: –40 °C to +85 °C
Available in 8-pin DIP, SOIC-8
• Strobable output (single channel products only)
• Safety approvals: UL, CSA, IEC/EN/DIN EN 60747-5-5

4.Applications
• Isolated line receiver
• Computer-peripheral interfaces
• Microprocessor system interfaces
• Digital isolation for A/D, D/A conversion
• Switching power supply
• Instrument input/output isolation
• Ground loop elimination
• Pulse transformer replacement
• Field buses

15MBd 2Ch 5mA High Speed Optocouplers HCPL-063L-500E 1

5.Thermal Derating Curve Figures

15MBd 2Ch 5mA High Speed Optocouplers HCPL-063L-500E 2

6.Why choose us?

100% new and originao with Advantage price
High efficiency
Fast Delivery
Professional team service
10 Years Experience Electronic components
Electronic components Agent
Advantage logistic discount
Excellent After-sales Service
