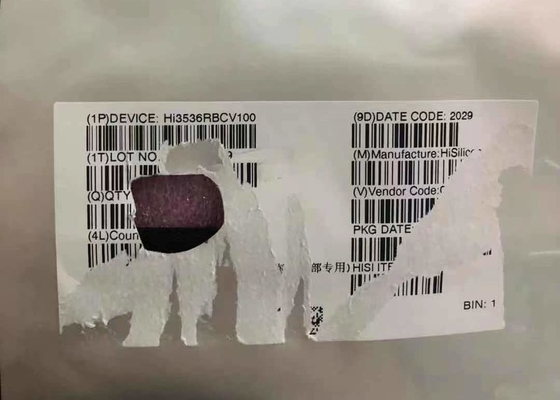

HI3536RBCV100 SATA 3.0 Electronic Integrated Circuits Image Processing Engine

Key Specifications
Processor Core
ARM Cortex A7 dual-core Video Encoding/Decoding Protocols
H.265/H.264/JPEG encoding and decoding Video Encoding/Decoding
4x 1080p@30 fps H.265/H.264 decoding
8x 720p@30 fps H.265/H.264 decoding
16x D1@30 fps H.265/H.264 decoding
1x 1080p@ 30 fps H.265/H.264 encoding Video and Graphics Processing
Efficiently optimize and improve the image quality in various scenes by integrating HiSilicon 's most advanced image processing engine.
Audio Encoding/Decoding
ADPCM, G.711, and G.726 hardware audio encoding
Software audio encoding and decoding complying with multiple protocols
Security Engine
AES, DES, and 3DES algorithms implemented by hardware
Video Interfaces
Support HDMI/VGA/CVBS output with high resolution up to 3840 x2160
Audio Interfaces
Support I2S/PCM interfaces
Ethernet Ports
Two gigabit Ethernet ports
Peripheral Interfaces
Support SATA 3.0 /USB 2.0 interfaces
Memory Interfaces
DDR3 SDRAM
Support SPI NOR/NAND flash
Embedded 4 KB BOOTROM and 16 KB SRAM
RTC with an Independent Power Supply
Independent battery for supplying power to the RTC
