| MOQ: | 10PCS |
| Price: | NEGOTIABLE |
| Standard Packaging: | 5000PCS/REEL |
| Delivery Period: | 2-3DAYS |
| Payment Method: | T/T, Western Union |
| Supply Capacity: | 50000PCS/WEEK |

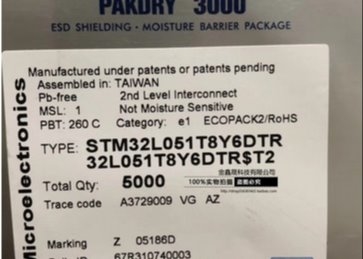

STM32L051T8Y6DTR ARM Microcontrollers - MCU 16/32-BITS MICROS
1.Features
•Ultra-low-power platform
– 1.65 V to 3.6 V power supply
–-40 to 125 °C temperature range
– 0.27 μA Standby mode (2 wakeup pins)
– 0.4 μA Stop mode (16 wakeup lines)
– 0.8 μA Stop mode + RTC + 8-Kbyte RAM retention
– 88 μA/MHz in Run mode
– 3.5 μs wakeup time (from RAM)
– 5 μs wakeup time (from Flash memory)
•Core: Arm® 32-bit Cortex®-M0+ with MPU
– From 32 kHz up to 32 MHz max.
– 0.95 DMIPS/MHz
•Memories
Up to 64-Kbyte Flash memory with ECC
– 8-Kbyte RAM
– 2 Kbytes of data EEPROM with ECC
– 20-byte backup register
– Sector protection against R/W operation
•Up to 51 fast I/Os (45 I/Os 5V tolerant)
•Reset and supply management
– Ultra-safe, low-power BOR (brownout reset) with 5 selectable thresholds
– Ultra-low-power POR/PDR
– Programmable voltage detector (PVD)
•Clock sources
– 1 to 25 MHz crystal oscillator
– 32 kHz oscillator for RTC with calibration
– High speed internal 16 MHz factory-trimmed RC (+/- 1%)
– Internal low-power 37 kHz RC
Internal multispeed low-power 65 kHz to 4.2 MHz RC
– PLL for CPU clock
•Pre-programmed bootloader
– USART, SPI supported
Development support
– Serial wire debug supported
Rich Analog peripherals
– 12-bit ADC 1.14 Msps up to 16 channels (down to 1.65 V)
– 2x ultra-low-power comparators (window mode and wake up capability, down to 1.65 V)
•7-channel DMA controller, supporting ADC, SPI, I2C, USART, Timers
•7x peripheral communication interfaces
– 2x USART (ISO 7816, IrDA), 1x UART (low power)
– Up to 4x SPI 16 Mbits/s
– 2x I2C (SMBus/PMBus)
•9x timers: 1x 16-bit with up to 4 channels, 2x 16-bit with up to 2 channels, 1x 16-bit ultra-low-power timer, 1x SysTick, 1x RTC, 1x 16-bit basic, and 2x watchdogs (independent/window)
•CRC calculation unit, 96-bit unique ID
2.
3.Why choose us?
100% new and originao with Advantage price
High efficiency
Fast Delivery
Professional team service
10 Years Experience Electronic components
Electronic components Agent
Advantage logistic discount
Excellent After-sales Service
|
|
