Shenzhen Hongxinwei Technology Co., Ltd
To adopt new technology,to produce products of quality,to offer high-class service.
 |
| Place of Origin: | Malaysia |
| Brand Name: | Texas Instruments |
| Certification: | ROHS |
| Model Number: | LMP7701MF |
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | 1000PCS/REEL |
| Delivery Time: | 2-3DAYS |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 30000PCS/WEEK |
| Number Of Channels: | 1 Channel | GBP - Gain Bandwidth Product: | 2.5 MHz |
|---|---|---|---|
| SR - Slew Rate: | 1 V/us | CMRR - Common Mode Rejection Ratio: | 88 DB To 130 DB |
| Output Current Per Channel: | 42 MA | Ib - Input Bias Current: | 1 PA |
| Vos - Input Offset Voltage: | 0.2 MV | En - Input Voltage Noise Density: | 9 NV/sqrt Hz |
| Supply Voltage - Max: | 12 V | Supply Voltage - Min: | 2.7 V |
| Operating Supply Current: | 715 UA | Minimum Operating Temperature: | - 40 C |
| Maximum Operating Temperature: | + 125 C | Height: | 1.02 Mm |
| Length: | 2.92 Mm | Width: | 1.6 Mm |
| In - Input Noise Current Density: | 0.001 PA/sqrt Hz | Operating Supply Voltage: | 3 V, 5 V, 9 V |
| PSRR - Power Supply Rejection Ratio: | 86 DB | Vcm - Common Mode Voltage: | 2.7 V To 12 V |
| Voltage Gain DB: | 130 DB | Factory Pack Quantity: | 1000 |
| High Light: | LMP7701MF/NOPB Precision Amplifiers,CMOS OP AMP Precision Amplifiers,12v precision instrumentation amplifier |
||

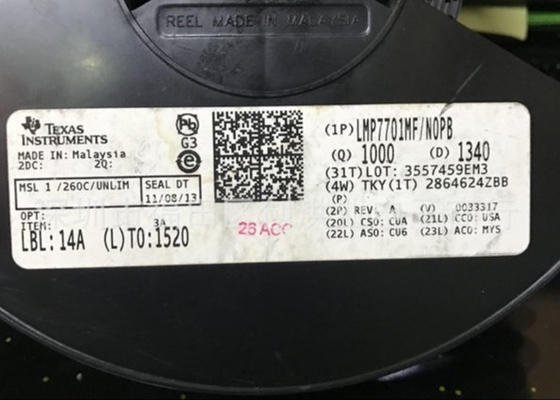

LMP7701MF/NOPB Precision Amplifiers 12V PREC CMOS OP AMP
1.Applications
DACBuffer
• InstrumentationAmplifier
• ActiveFilters
HighImpedanceSensorInterface
• Battery-PoweredInstrumentation
• HighGainAmplifier
2.Typical Application Schematic
3.Description
TheLMP770xeachhavea rail-to-railinputstagethatsignificantlyreducesthe CMRRglitchcommonlyassociatedwith rail-to-railinputamplifiers.Thisis achievedby trimmingbothsidesof the complimentaryinputstage,therebyreducingthe differencebetweenthe NMOSand PMOSoffsets.Theoutputof the LMP770xswingswithin40 mV of eitherrail to maximizethe signaldynamicrangein applicationsrequiringlow supplyvoltage.
The LMP7701is offeredin the space-saving5-PinSOT-23and 8-PinSOICpackage.The LMP7702is offeredinthe 8-PinSOICand 8-PinVSSOPpackage.The quadLMP7704is offeredin the 14-PinSOICand 14-PinTSSOPpackage.Thesesmallpackagesare idealsolutionsfor areaconstrainedPC boardsandportableelectronics
4.Why choose us?
100% new and originao with Advantage price
High efficiency
Fast Delivery
Professional team service
10 Years Experience Electronic components
Electronic components Agent
Advantage logistic discount
Excellent After-sales Service
