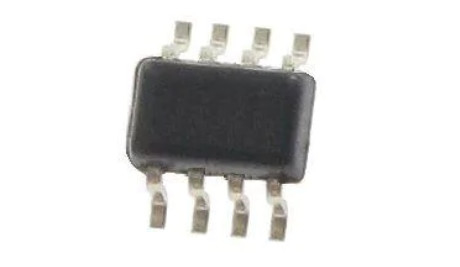

MAX9618AXA+T 1.5MHz Operational Amplifiers With RRIO

MAX9618AXA+T 1.5MHz Operational Amplifiers With RRIO

  • MAX9618AXA+T 1.5MHz Operational Amplifiers With RRIO
  • MAX9618AXA+T 1.5MHz Operational Amplifiers With RRIO
MAX9618AXA+T 1.5MHz Operational Amplifiers With RRIO
Product Details:
Place of Origin: Thailand
Brand Name: Maxim Integrated
Certification: ROHS
Model Number: MAX9618AXA+T
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Packaging Details: 2500PC/REEL
Delivery Time: 2-3DAYS
Payment Terms: T/T, Western Union
Supply Ability: 20000PCS/WEEK
Contact Now
Detailed Product Description
Package / Case: SC-70-8 Number Of Channels: 2 Channel
Supply Voltage - Max: 5.5 V GBP - Gain Bandwidth Product: 1.5 MHz
Output Current Per Channel: 150 MA SR - Slew Rate: 0.7 V/us
Vos - Input Offset Voltage: 10 UV Supply Voltage - Min: 1.8 V
Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 125 C
Ib - Input Bias Current: 80 PA Operating Supply Current: 59 UA
CMRR - Common Mode Rejection Ratio: 122 DB Pd - Power Dissipation: 245 MW
Factory Pack Quantity: 2500
High Light:

1.5MHz Operational Amplifiers


MAX9618AXA+TOperational Amplifiers


RRIO Op Amps

MAX9618AXA+T Operational Amplifiers - Op Amps High-Efficiency, 1.5MHz Op Amps With RRIO


1.General Description

The MAX9617–MAX9620 are low-power, zero-drift oper-ational amplifiers available in space-saving SC70 pack-ages. They are designed for use in portable consumer, medical, and industrial applications.
The MAX9617–MAX9620 feature rail-to-rail CMOS inputs and outputs, a 1.5MHz GBW at just 59FA supply current and 10FV (max) zero-drift input offset voltage over time and temperature. The zero-drift feature reduces the high 1/f noise typically found in CMOS input operational ampli-fiers, making it useful for a wide variety of low-frequency measurement applications.
The MAX9617 and MAX9619 are available in a space-saving, 2mm x 2mm, 6-pin SC70 package. The MAX9619 features a power-saving shutdown mode. The MAX9618 is available in a 2mm x 2mm, 8-pin SC70 package. The MAX9620 is available in a 2mm x 2mm, 5-pin SC70 package. All devices are specified over the -40NC to +125NC automotive operating temperature range

2.Benefits and Features

Extends Battery Life
• Low 59μA Quiescent Current
• Single 1.8V to 5.5V Supply Voltage Range
• Power-Saving Shutdown Mode (MAX9619)
Supports a Wide Range of Precision Applications
• Very Low 10μV (max) Input Offset Voltage
• Ultra-Low 10pA Input Bias Current
• 1.5MHz GBW
• Unity-Gain Stable
• 0.42μVP-P from 0.1Hz to 10Hz
42nV/√Hz at 1kHz
Rail-to-Rail Inputs and Outputs
Saves Board Space
• 5-Pin SC70 (MAX9620), 6-Pin SC70 (MAX9617/MAX9619), and 8-Pin SC70 (MAX9618) Packages


Sensor Interfaces
Loop-Powered Systems
Portable Medical Devices
Battery-Powered Devices
Cardiac Monitors

4.Block Diagram

MAX9618AXA+T 1.5MHz Operational Amplifiers With RRIO 0
