Shenzhen Hongxinwei Technology Co., Ltd
To adopt new technology,to produce products of quality,to offer high-class service.
 |
| Place of Origin: | CHINA |
| Brand Name: | TDK |
| Certification: | ROHS |
| Model Number: | SPM4015T-R68M-LR |
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | NEGOTIABLE |

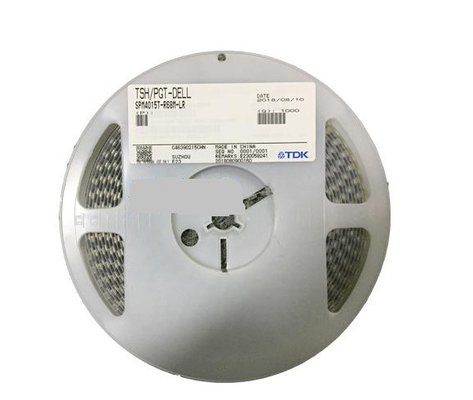

| Packaging Details: | 1000PCS/REEL |
| Delivery Time: | 2-3DAYS |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000PCS/WEEK |
| Shielding: | Shielded | Inductance: | 680 NH |
|---|---|---|---|
| Tolerance: | 20 % | Minimum Operating Temperature: | - 40 C |
| Maximum Operating Temperature: | + 125 C | Length: | 4.4 Mm |
| Width: | 4.1 Mm | Height: | 1.5 Mm |
| Test Frequency: | 100 KHz | Factory Pack Quantity: | 1000 |
| High Light: | Magnetic Shield Wound Inductor,SPM4015T-R68M-LR Wound Inductor,low rdc wire wound inductor |
||
SPM4015T-R68M-LR Smart Phones, Tablet Terminals, Laptop Computers, HDDs, Servers, VRMs, Compact Power Supply Modules, Ot
1.FEATURES
Magnetic shield type wound inductor for power circuits using a metallic magnetic material.
Low-profile product.
Compared to ferrite wound type inductors, it is possible to achieve large current, low Rdc, and compactness.
Low inductance variance in high-temperature environments with good DC superimposition characteristics.
Metallic magnetic material is used, and the structure has an integrated molded coil, so hum noise is lower than with core adhesive coils
2.APPLICATION
Smart phones, tablet terminals, laptop computers, HDDs, servers, VRMs, compact power supply modules, other
3.RECOMMENDED REFLOW PROFILE
4.SHAPE & DIMENSIONS
5.L FREQUENCY CHARACTERISTICS GRAPH
6.Why choose us?
100% new and originao with Advantage price
High efficiency
Fast Delivery
Professional team service
10 Years Experience Electronic components
Electronic components Agent
Advantage logistic discount
Excellent After-sales Service
Contact Person: Mr. 段
Tel: 86-755-82715827
Fax: 86-755-22678033
