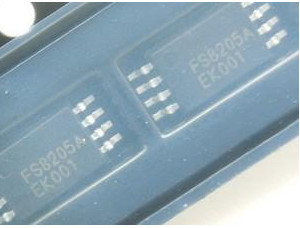

Name: FS8205A Dual N Channel Enhancement Mode MOSFET 20V 6A
Brand: FORTUNE
SKU: FS8205A

Home Products Electronic Integrated Circuits

FS8205A Dual N Channel Enhancement Mode MOSFET 20V 6A

Product Details:

Place of Origin:	TAIWAN
Brand Name:	FORTUNE
Certification:	ROHS
Model Number:	FS8205A

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	NEGOTIABLE
Packaging Details:	3000PCS/REEL
Delivery Time:	2-3DAYS
Payment Terms:	T/T, Western Union
Supply Ability:	12000PCS/WEEK

Contact Now

Detailed Product Description

Rain-Source Voltag:	20A	Drain Current (Continuous):	6A
Ate-Source Voltag:	±12	Drain Current (Pulsed) *1:	30A
Total Power Dissipation @TA=25oC:	1.5W	Total Power Dissipation @TA=75oC:	0.96W
Operating And Storage Temperature Range:	-55 To +150 ℃	Thermal Resistance Junction To Ambient*2:	83℃/W
High Light:	Enhancement Mode MOSFET , FS8205A MOSFET , 20V 6A n channel mosfet

FS8205A Dual N-Channel Enhancement-Mode MOSFET (20V, 6A)

1.Description

This N-Channel 2.5V specified MOSFET is a rugged gate version of advanced trench process. It has been optimized for power management applications with a wide range of gate drive voltage (2.5V-10V)

2.Features

RDS(on)=38mΩ@VGS=2.5V, ID=5.2A; RDS(on)=25mΩ@VGS=4.5V, ID=6A
• High Density Cell Design for Ultra Low On-Resistance
• High Power and Current Handing Capability
• Fully Characterized Avalanche Voltage and Current
• Ideal for Li ion Battery Pack Applications

3.Applications

Battery Protection
Load Switch
Power Management

4.SwitchingTest Circuit

FS8205A Dual N Channel Enhancement Mode MOSFET 20V 6A 0

5.TSSOP-8L Dimension

FS8205A Dual N Channel Enhancement Mode MOSFET 20V 6A 1

6.Why choose us?

100% new and originao with Advantage price
High efficiency
Fast Delivery
Professional team service
10 Years Experience Electronic components
Electronic components Agent
Advantage logistic discount
Excellent After-sales Service
