| MOQ: | 10PCS |
| Price: | NEGOTIABLE |
| Standard Packaging: | 3000PCS/REEL |
| Delivery Period: | 2-3DAYS |
| Payment Method: | T/T, Western Union |
| Supply Capacity: | 30000PCS/WEEK |

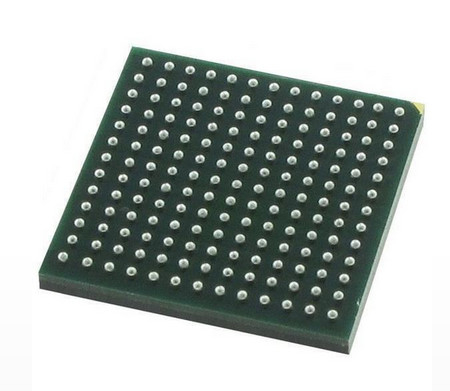

MK65FN2M0CAC18R ARM Microcontroller-MCU Kinetis K65: 180MHz Cortex-M4F MCU, 2MB Flash, 256K RAM, 2xUSB, Ethernet, Anti-T
1.Kinetis K65 Sub-Family180 MHz ARM® Cortex®-M4F Microcontroller
The K65 sub-family members provide greater performance,memory options up to 2 MB total flash and 256 KB of SRAM, aswell as higher peripheral integration with features such as DualUSB and a 10/100 Mbit/s Ethernet MAC. These devices maintainhardware and software compatibility with the existing Kinetisfamily. This product also offers:
• Integration of a High Speed USB Physical Transceiver
• Greater performance flexibility with a High Speed Runmode
• Smarter peripherals with operation in Stop modes
2.Performance
Up to 180 MHz ARM Cortex-M4 based core with DSPinstructions and Single Precision Floating Point unit
3.System and Clocks
Multiple low-power modes to provide poweroptimization based on application requirements
Memory protection unit with multi-master protection
3 to 32 MHz main crystal oscillator
32 kHz low power crystal oscillator
48 MHz internal reference
4.Security
Hardware random-number generator
Supports DES, AES, SHA accelerator (CAU)
Multiple levels of embedded flash security
5.Timers
Four Periodic interrupt timers
16-bit low-power timer
Two 16-bit low-power timer PWM modules
Two 8-channel motor control/general purpose/PWMtimers
Two 2-ch quad decoder/general purpose timers
Real-time clock
6.Human-machine interface
Low-power hardware touch sensor interface (TSI)
General-purpose input/output
7.Memories and memory expansion
• Up to 2 MB program flash memory on non-FlexMemory devices with 256 KB RAM
• Up to 1 MB program flash memory and 256 KB ofFlexNVM on FlexMemory devices
• 4 KB FlexRAM on FlexMemory devices
• FlexBus external bus interface and SDRAM controller
8.Analog modules
• Two 16-bit SAR ADCs and two 12-bit DAC
• Four analog comparators (CMP) containing a 6-bitDAC and programmable reference input
• Voltage reference 1.2V
9.Communication interfaces
• Ethernet controller with MII and RMII interface toexternal PHY and hardware IEEE 1588 capability
• USB high-/full-/low-speed On-the-Go with on-chiphigh speed transceiver
• USB full-/low-speed OTG with on-chip transceiver
• Two CAN, three SPI and four I2C modules
• Low Power Universal Asynchronous Receiver/Transmitter 0 (LPUART0) and five standard UARTs
• Secure Digital Host Controller (SDHC)
• I2S module
10.Operating Characteristics
• Voltage/Flash write voltage range:1.71 to 3.6 V
• Temperature range (ambient): -40 to 85°C
11.and rise and fall times are measured at the 20% and 80% points, as shown in thefollowing figure.
12.Why choose us?
100% new and originao with Advantage price
High efficiency
Fast Delivery
Professional team service
10 Years Experience Electronic components
Electronic components Agent
Advantage logistic discount
Excellent After-sales Service
|
|
