MSP430F413IPMR 8kB 16MHz Microcontrollers MCU Texas Instruments

MSP430F413IPMR 8kB 16MHz Microcontrollers MCU Texas Instruments

  • MSP430F413IPMR 8kB 16MHz Microcontrollers MCU Texas Instruments
MSP430F413IPMR 8kB 16MHz Microcontrollers MCU Texas Instruments
Product Details:
Place of Origin: Philippines
Brand Name: Texas Instruments
Certification: ROHS
Model Number: MSP430F413IPMR
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable

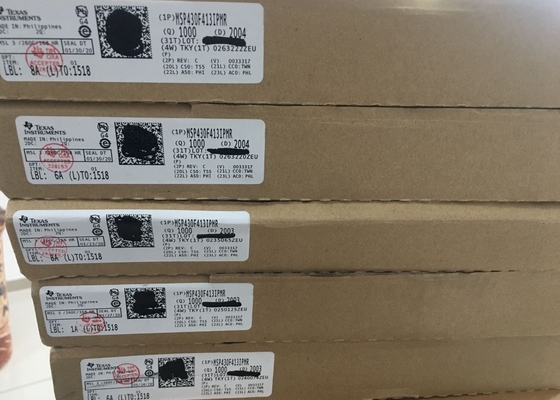

Packaging Details: 1000pcs/reel
Delivery Time: 2-3DAYS
Payment Terms: T/T, Western Union
Supply Ability: 50000pcs/week
Contact Now
Detailed Product Description
Program Memory Size: 8kB Data Bus Width: 16 Bit
ADC Resolution: No ADC Maximum Clock Frequency: 16MHz
Number Of I/Os: 48 I/O Data RAM Size: 256 B
Operating Supply Voltage: 1.8 V To 3.6 V Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C Height: 1.4 Mm
Length: 10 Mm Program Memory Type: Flash
Width: 10 Mm Data ROM Size: 256 B
Interface Type: UART Number Of Timers/Counters: 1 Timer
Processor Series: 4 Series Factory Pack Quantity: 1000
Watchdog Timers: No Watchdog Timer Unit Weight: 0.012088 Oz
High Light:

16MHz Microcontrollers MCU

,

8kB Microcontrollers MCU

,

Texas Instruments MSP430F413IPMR

MSP430F413IPMRElectronic Integrated Circuits 16-bit Microcontrollers - MCU Texas Instruments  Metering, industrial, portable equipment, sensing and instrumentation,

1.Low Supply-Voltage Range, 1.8 V to 3.6 V
Ultralow Power Consumption− Active Mode: 200 μA at 1 MHz, 2.2 V− Standby Mode: 0.7 μA− Off Mode (RAM Retention): 0.1 μA
Five Power-Saving Modes
Wake-Up From Standby Mode in Less Than 6 μs
Frequency-Locked Loop (FLL+)
16-Bit RISC Architecture, 125-nsInstruction Cycle Time
16-Bit Timer_A With Three or Five†Capture/Compare Registers
Integrated LCD Driver for 96 Segments
On-Chip Comparator
Brownout Detecto
Supply Voltage Supervisor/Monitor −Programmable Level Detection onMSP430F415/417 Devices Only

2.description
The Texas Instruments MSP430 family of ultra-low-power microcontrollers consists of several devices featuringdifferent sets of peripherals targeted for various applications. The architecture, combined with five low powermodes, is optimized to achieve extended battery life in portable measurement applications. The device featuresa powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum codeefficiency.The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in lessthan 6 μs.The MSP430x41x series are microcontroller configurations with one or two built-in 16-bit timers, a comparator,96 LCD segment drive capability, and 48 I/O pins.Typical applications include sensor systems that capture analog signals, convert them to digital values, andprocess the data and transmit them to a host system. The comparator and timer make the configurations idealfor industrial meters, counter applications, handheld meters, etc

3.pin designation −MSP430x413

MSP430F413IPMR 8kB 16MHz Microcontrollers MCU Texas Instruments 0

4.functional block diagram − MSP430x413

MSP430F413IPMR 8kB 16MHz Microcontrollers MCU Texas Instruments 1
