|Place of Origin:||TAIWAN|
|Minimum Order Quantity:||10PCS|
|Payment Terms:||T/T, Western Union|
|Product Category:||Real Time Clock||RTC Bus Interface:||Serial, 2-Wire, I2C|
|Date Format:||DW:DM:M:Y||Time Format:||HH:MM:SS:hh|
|Battery Backup Switch:||No Backup Switching||RTC Storage Capacity:||16B|
|Power Supply Voltage-maximum:||4.4 V||Power Supply Voltage-minimum:||1.3 V|
|Minimum Operating Temperature:||-40 C||Maximum Operating Temperature:||+ 85 C|
|Functions:||Alarm, Calendar, Clock, Timer Interrupt||Factory Packing Quantity:||1000|
16B RTC Real Time Clock,
16B RTC Real Time Clock,
400kHz STMicroelectronics RTC

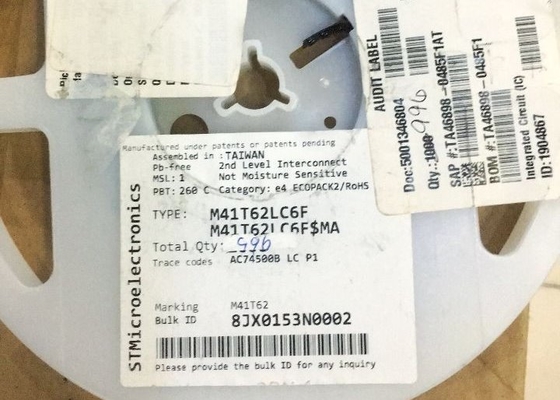

M41T62LC6F Electronic Integrated Alarm, Calendar, Clock, Timer Interrupt
Serial real-time clock (RTC) with alarm functions
– 400kHz I²C serial interface
– Memory mapped registers for seconds, minutes, hours, day, date, month,year, and century
– Tenths/hundredths of second register
• 350 nA timekeeping current at 3 V
• Time keeping down to 1.0 V
• 1.3 V to 4.4 V I²C bus operating voltage– 4.4 V max. VCC suitable for lithium-ion battery operation
• Low operating current of 35 μA (at 400 kHz I²C speed)
• 32 kHz square wave output is on at power-up. Suitable for driving amicrocontroller in low-power mode. Can be disabled. (M41T62/64)
• Programmable 1 Hz to 32 kHz square wave output (M41T62/64)
• Programmable alarm with interrupt function (M41T62/65)
• 32 kHz crystal oscillator integrates crystal load capacitors, works with highseries resistance crystals
• Oscillator stop detection monitors clock operation
• Accurate programmable watchdog– 62.5 ms to 31 minutes timeout
• Software clock calibration. Timekeeping can be adjusted within ± 2 parts permillion (± 5 seconds per month)
• Automatic leap year compensation
• – 40 to + 85 °C operation• Two package options– Very small 3 x 3 mm, lead-free and halogen-free (ECOPACK2) 16-leadQFN– Ultra small 1.5 x 3.2 mm, lead-free and halogen-free (ECOPACK2) 8-pinceramic leadless chip carrier with embedded 32 kHz crystal - no externaloscillator components required (M41T62)
2.The M41T6x is a low-power serial real-time clock (RTC) with a built-in 32.768 kHz oscillator. Eight registers areused for the clock/calendar function and are configured in binary-coded decimal (BCD) format. Further eightregisters provide status/control of alarm, 32 kHz output, calibration, and watchdog functions. Addresses and dataare transferred serially via a two-line, bidirectional I²C interface. The built-in address register is incrementedautomatically after each WRITE or READ data byte.Functions available to the user include a time-of-day clock/calendar, an alarm interrupt (M41T62/M41T65), a 32kHz output (M41T62/M41T64), a programmable square wave output (M41T62/M41T64), and a watchdog output(M41T65). The eight clock address locations contain the century, year, month, date, day, hour, minute, secondand tenths/hundredths of a second in 24-hour BCD format. Corrections for 28-, 29- (leap year), 30- and 31-daymonths are made automatically.The M41T6x is supplied in two very small packages: a tiny, 3 x 3 mm 16-pin QFN which requires a user-supplied32 kHz crystal, and an ultra-small 1.5 x 3.2 mm LCC with embedded crystal - no external crystal is required.
