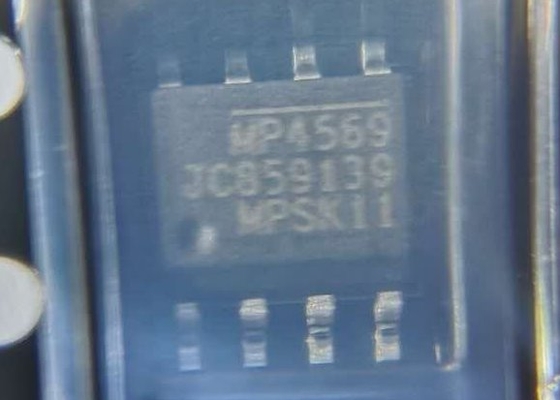

MP4569GN-Z Switching Regulator Monolithic Power Systems

MP4569GN-Z Switching Regulator Monolithic Power Systems

MOQ: 10PCS
Price: Negotiation
Standard Packaging: 2500PC/REEL
Delivery Period: 2-3DAYS
Payment Method: T/T, Western Union
Supply Capacity: 10000PCS/WEEK
Detail Information
Place of Origin
CHIMA
Brand Name
Monolithic Power Systems
Certification
ROHS
Model Number
MP4569GN-Z
Product Category:
Switching Regulator
Output Voltage:
1 V To 67.5 V
Output Current:
300 MA
Number Of Outputs:
1 Output
Maximum Input Voltage:
75 V
Minimum Input Voltage:
4.5 V
Minimum Operating Temperature:
-40 C
Maximum Operating Temperature:
+ 125 C
Quiescent Current:
20 UA
Power Supply Voltage-minimum:
4.5 V
Factory Packing Quantity:
2500
Highlight:

0.3A Switching Regulator

,

75V Switching Regulator

,

MP4569GN-Z

Product Description

MP4569GN-Z Switching Regulator 75V 0.3A Sync Step Down Converter

DESCRIPTION The MP4569 is a step-down switching regulator with integrated high-side/low-side, high-voltage power MOSFETs. It provides a highly efficient output of up to 0.3A. The wide 4.5V to 75V input range accommodates a variety of step-down applications in automotive environment. A 3.5μA shutdown mode quiescent current is good for battery-powered applications. It allows for high power conversion efficiency over a wide load range by scaling down the switching frequency under light-load condition to reduce the switching and gate driver losses. The switching frequency during start-up and short circuit also can be scaled down to prevent inductor current runaway. Thermal shutdown provides reliable, fault-tolerant operation. The MP4569 is available in QFN-10 (3mmx3mm) and SOIC-8 EP packages

2.FEATURES • 20μA Quiescent Current (Active mode) • Wide 4.5V to 75V Operating Input Range • 1.2Ω/0.45Ω Internal Power MOSFETs • Programmable Soft-Start • FB-Tolerance: 1% at Room Temperature; 2% at Full Temperature. • Adjustable Output • 1V Reference Voltage Output for QFN Package • Low Shutdown Mode Current: 3.5μA • Available in QFN-10 (3mmx3mm) and SOIC-8 EP Packages
APPLICATIONS • Automotive Systems • Industrial Power Systems • Distributed Power Systems • Battery Powered Systems

MP4569GN-Z  Switching Regulator Monolithic Power Systems 0

Q1. What is your terms of packing?

A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.



Q2. What is your MOQ?

A: We provide you small MOQ for each item, it depends your specific order!



Q3. Do you test or check all your goods before delivery?

A: Yes, we have 100% test and check all goods before delivery.



Q4: How do you make our business long-term and good relationship?

A:We keep good quality and competitive price to ensure our customers benefit ;

We respect every customer as our friend and we sincerely do business and make friends with them,It's not something that can be replaced.



Q5: How to contact us?
A: Send your inquiry details in the below,Click "Send"Now!!!



MP4569GN-Z  Switching Regulator Monolithic Power Systems 1
