|Place of Origin:||XHINA|
|Brand Name:||MEAN WELL|
|Minimum Order Quantity:||1PCS|
|Payment Terms:||T/T, Western Union|
|Product Category:||Isolated DC/DC Converter||Number Of Outputs:||2 Output|
|Output Power:||30W||Input Voltage (nominal Value):||24 V|
|Input Voltage (minimum):||9 V||Input Voltage (maximum):||36 V|
|Output Voltage-channel 1:||15 V||Output Current—channel 1:||1 A|
|Output Voltage-channel 2:||-15 V||Output Current-Channel 2:||-1 A|
|Insulation Voltage:||1.5kV||Output Voltage V1 (nominal Value):||15 VDC|
|Output Voltage V2 (nominal Value):||-15 VDC||Factory Packing Quantity:||12|
30W Electronic Integrated Circuits,
1.5kV Electronic Integrated Circuits,

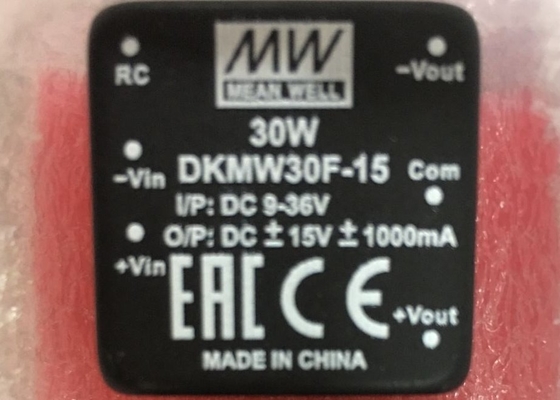

DKMW30F-15 Electronic Integrated Circuits ISOLATED DC/DC CONVERTER 9-36VIN +/-15VOUT +/-1000MA DIP ISO
Telecom datacom system
Industrial control facility
DIP 1"x1" package with industry standard pinout
4:1 ultrawide input range
Operating temperature range -40 ~ +85°C
No minimum load required
Comply to EN55032 radiated Class A
without additional componentsHigh efficiency up to 90%Protections: Short circuit (Continuous) Overload / Over voltage / Over temperature / Input under voltage
1.5KVDC I/O isolation
Remote ON/OFF control and Triming output ( 10%)±3 years warrant
3.SKMW3 0KMW3 0 3 0regulatedD 1 x1and D series are Wisolated and module type DC-DC converter with IP " "package. It features international standard pins, a high efficiency up to %, working temperature 9 0widerange -40~+ , . KVDC I/P-O/Pisolation voltage, 85 1 5compliance to EN55032 radiated Class A without °C
additional componentsoverload over temperature input under voltage, continuous-mode short circuit, protection, etc. The models accountfor different input remote ON OFF and trimmable outputvoltagevoltage and various output voltage, . /5V/12V/15V9~36V and 18~75V 4:1 ultrawide input range,33Vforfor singleoutput and ±12V/±15V dual outputs, which are suitable for allkinds of systems, uchsas industrial control, telecommunication field, distributed power architecture, and so on.
