|Place of Origin:||CHINA|
|Minimum Order Quantity:||10PCS|
|Payment Terms:||T/T, Western Union|
|Product Category:||USB Switch IC||Product:||USB 2.0 Switches|
|Configuration:||2 X SPDT||On Resistance—maximum:||10 Ohms|
|Run Time—maximum:||30 Ns||Idle Time—Maximum:||25 Ns|
|Working Power Supply Voltage:||3 V To 4.3 V||Minimum Operating Temperature:||-40 C|
|Maximum Operating Temperature:||+ 85 C||Number Of Switches:||2 Switch|
|Working Power Supply Current:||1 UA||Factory Packing Quantity:||4000|
480Mbps USB Switch IC,
HI-SPD USB Switch IC,

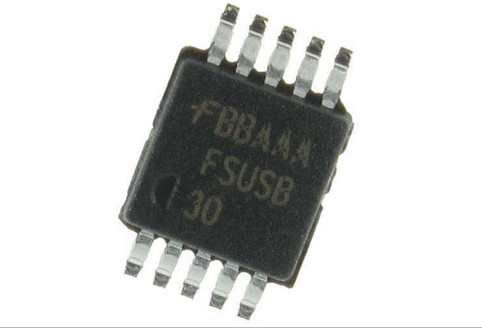

FSUSB30MUX ELECTRONIC INTEGRATED CIRCUITS USB SWITCH IC L- PWR 2-PORT HI-SPD USB (480 MBPS) SWTCH
1.FSUSB30 Rev. 1.1.8April 2013FSUSB30Low-Power, Two-Port, High-Speed USB 2.0 (480Mbps) Switch
Low On Capacitance: 3.7pF (Typical)?Low On Resistance: 6.5 (Typical)?Low Power Consumption: 1μA (Maximum)– 10μA Maximum ICCT over an Expanded Control Voltage Range (VIN = 2.6V, VCC = 4.3V)?Wide -3dB Bandwidth, >720MHz?8kV ESD Protection?Power-Off Protection when VCC = 0V; D+/ D- Pins can Tolerate up to 5.5V?Packaged in:– 10-lead MicroPak™ (1.6 x 2.1mm)– 10-lead MSOP – 10-lead UMLP (1.4 x 1.8mm) Applications?Cell phone, PDA, Digital Camera, and Notebook LCD Monitor, TV, and Set-top BoxRelated Application Notes.
2.DescriptionThe FSUSB30 is a low-power, two-port, high-speed USB2.0 switch. Configured as a double-pole double-throw(DPDT) switch, it is optimized for switching between twohigh-speed (480Mbps) sources or a Hi-Speed and Full-Speed (12Mbps) source. The FSUSB30 is compatiblewith the requirements of USB2.0 and features anextremely low on capacitance (CON) of 3.7pF. The widebandwidth of this device (720MHz), exceeds the band-width needed to pass the third harmonic, resulting in sig-nals with minimum edge and phase distortion. Superiorchannel-to-channel crosstalk minimizes interference. The FSUSB30 contains special circuitry on the D+/ D-pins which allows the device to withstand an overvoltagecondition when powered off. This device is also designedto minimize current consumption even when the controlvoltage applied to the S pin, is lower than the supply volt-age (VCC). This feature is especially valuable to ultra-portable applications such as cell phones, allowing fordirect interface with the general purpose I/Os of thebaseband processor. Other applications include switch-ing and connector sharing in portable cell phones, PDAs,digital cameras, printers, and notebook computers.
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons.
If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your MOQ?
A: We provide you small MOQ for each item, it depends your specific order!
Q3. Do you test or check all your goods before delivery?
A: Yes, we have 100% test and check all goods before delivery.
Q4: How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit ;
We respect every customer as our friend and we sincerely do business and make friends with them,It's not something that can be replaced.
Q5: How to contact us?
A: Send your inquiry details in the below,Click "Send"Now!!!
