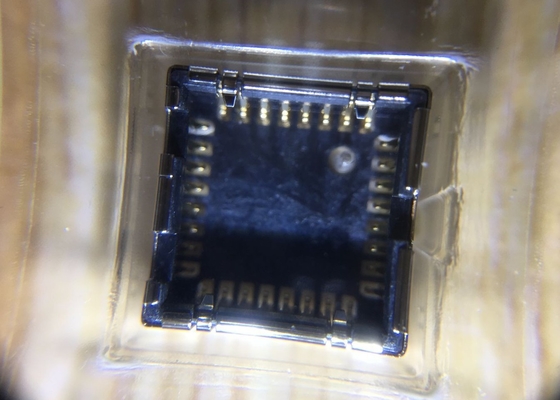

105028-1001 Molex IC 8.5*8.5 Auto Focus Camera Socket

105028-1001 Molex IC 8.5*8.5 Auto Focus Camera Socket

105028-1001 Molex IC 8.5*8.5 Auto Focus Camera Socket
105028-1001 Molex IC 8.5*8.5 Auto Focus Camera Socket
105028-1001 Molex IC 8.5*8.5 Auto Focus Camera Socket
Product Details:
Place of Origin: CHINA
Brand Name: Molex
Certification: ROHS
Model Number: 105028-1001
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Packaging Details: 4800PCS/REEL
Delivery Time: 5-6/DAYS
Payment Terms: T/T, Western Union
Supply Ability: 96000PCS/WEEK
Contact Now
Detailed Product Description
Product Type: IC And Device Socket Product: Camera Sockets
Number Of Positions: 32 Position Rows: 4 Row
Pitch: 0.9 Mm Termination Type: Through Hole
Contact Plating: Gold Current Rating: 500 MA
Housing Material: Thermoplastic Voltage Rating: 50 VAC/DC
Package: Reel Factory Packing Quantity: 4800
High Light:

Thermoplastic Through Hole IC Socket


4 Row Molex IC Socket

GeneralProduct Family Other SocketsSeries 105028Component TypeSocketOverview Camera SocketsProduct Name Camera Socket
UPC 883906524173PhysicalCircuits (Loaded) 32Circuits (maximum) 32
Color - Resin BlackDurability (mating cycles max)
20Entry AngleVertical (Top Entry)Keying to Mating Part YesMaterial - Metal Copper AlloyMaterial - Plating Mating GoldMaterial - Plating Termination GoldMaterial - Resin High Temperature ThermoplasticNet Weight 0.739/gPCB Retention N/APCB Thickness - Recommended 1.00mmPackaging Type Embossed Tape on ReelPitch - MatingInterface 0.90mmPitch
- Termination Interface 0.90mm
Temperature Range - Operating -55° to +85°CTermination Interface: Style Through HoleElectricalCurrent - Maximum per Contact 0.5A
Voltage - Maximum 50V AC/DCSolder Process Data
Duration at Max. Process Temperature (seconds) 003Lead-freeProcess Capability REFLOWMax. Cycles at Max. Process Temperature 002Process Temperature max. C 255
