|Place of Origin:||CHINA|
|Minimum Order Quantity:||10PCS|
|Payment Terms:||T/T, Western Union|
|Product Type:||Isolated DC/DC Converter||Number Of Outputs:||1 Output|
|Output Power:||2W||Input Voltage (nominal Value):||5V|
|Input Voltage (minimum):||4.5V||Input Voltage (maximum):||5.5V|
|Output Voltage—Channel 1:||4.75 V To 5.25 V||Output Current—Channel 1:||400 MA|
|Insulation Voltage:||1 KV||Package / BoX:||SOP-12|
|Input Voltage:||4.5 V To 5.5 V||Package:||Reel|
|Factory Pack Quantity:||1000|

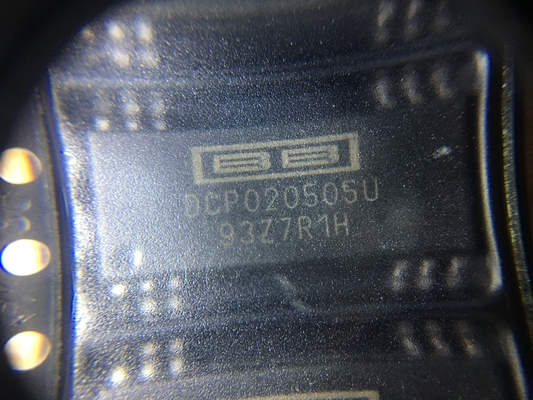

2W Isolated DC converter,
Texas Instruments Integrated Circuit Ic
• 1-kV Isolation (operational): 1-second test
• Continuous voltage applied across isolation
barrier: 60 VDC / 42.5 VAC
• UL1950 recognized component
• EN55022 class B EMC performance
• 7-Pin PDIP and 12-pin SOP packages
• Input voltage: 5 V, 12 V, 15 V, or 24 V
• Output voltage: 3.3 V, ±5 V, 7 V, 9 V, ±12 V, or
• Device-to-device synchronization
• Thermal protection
• Short-circuit protection
• High efficiency
2 Applications • Signal path isolation • Ground loop elimination • Data acquisition • Industrial control and instrumentation • Test equipment
3 Description The DCP02 series is a family of 2-W, isolated, unregulated DC/DC converter modules. Requiring a minimum of external components and including onchip device protection, the DCP02 series of devices provide extra features such as output disable and synchronization of switching frequencies. This combination of features and small size makes the DCP02 series of devices suitable for a wide range of applications, and is an easy-to-use solution in applications requiring signal path isolation.
4.Pin Configuration and Functions
5.Functional Block Diagrams
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your MOQ?
A: We provide you small MOQ for each item, it depends your specific order!
Q3. Do you test or check all your goods before delivery?
A: Yes, we have 100% test and check all goods before delivery.
Q4: How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefit ;
We respect every customer as our friend and we sincerely do business and make friends with them,It's not something that can be replaced.
Q5: How to contact us?
A: Send your inquiry details in the below,Click "Send"Now!!!
Contact Person: Mr. 段
