Shenzhen Hongxinwei Technology Co., Ltd
To adopt new technology,to produce products of quality,to offer high-class service.
 |
| Place of Origin: | Philippines |
| Brand Name: | TI |
| Certification: | ROHS |
| Model Number: | CSD18534Q5A |
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | 2500PCS/REEL |
| Delivery Time: | 2-3DAYS |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000PCS/WEEK |
| Product Type: | MOSFET | Technology: | Si |
|---|---|---|---|
| Installation Style: | SMD/SMT | Package/Box: | VSONP-8 |
| Transistor Polarity: | N-Channel | Number Of Channels: | 1 Channel |
| Vds-drain Source Breakdown Voltage: | 60V | Id-continuous Drain Current: | 100A |
| Rds On-drain-source On-resistance: | 9.8 MOhms | Vgs-gate-source Voltage: | 20V |
| Vgs Th-gate Source Threshold Voltage: | 1.9V | Qg-gate Charge: | 17 NC |
| Pd-power Dissipation: | 3.1W | Package: | Reel |
| Configuration: | Single | Height: | 1 Mm |
| Length: | 6 Mm | Transistor Type: | 1 N-Channel |
| Width: | 4.9 Mm | Forward Transconductance-minimum: | 122 S |
| Fall Time: | 2 Ns | Rise Time: | 5.5 Ns |
| Typical Off Delay Time: | 15 Ns | Typical Turn-on Delay Time: | 5.2 Ns |
| Factory Pack Quantity: | 2500 | ||
| High Light: | N Channel Si MOSFET,60V Halogen Free MOSFET |
||

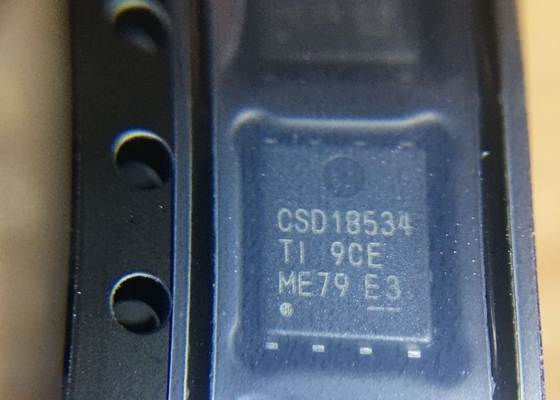

CSD18534Q5A Texas Instruments MOSFET 60V N Ch NexFET Pwr MOSFET
1. Features
• Ultra-Low Qg and Qgd
• Low Thermal Resistance VDS
• Avalanche Rated
• Logic Level
• Pb Free Terminal Plating
• RoHS Compliant
• Halogen Free
• SON 5 mm × 6 mm Plastic Package
2.Q5A Package Dimensions
