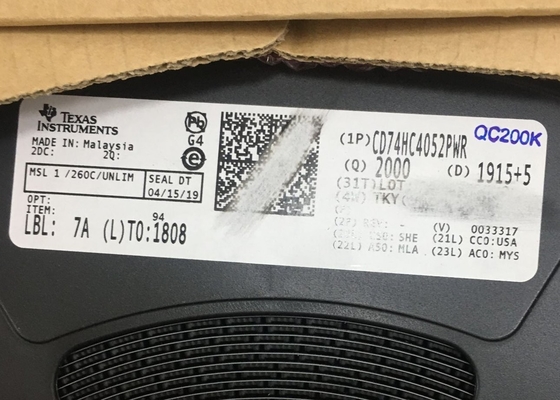

Hi-Spd CMOS Mltplxr Demltplxr CD74HC4052PWR Analog Switch Ic

Texas Instruments SN65176BDR RS 485 interface IC Differential Bus

CDx4HC405x, CDx4HCT405x High-Speed CMOS Logic Analog Multiplexers and Demultiplexers

 1 .Features

Wide Analog Input Voltage Range: ±5-V Maximum • Low ON-Resistance – 70-Ω Typical (VCC – VEE = 4.5 V) – 40-Ω Typical (VCC – VEE = 9 V) • Low Crosstalk Between Switches • Fast Switching and Propagation Speeds • Break-Before-Make Switching • Wide Operating Temperature Range: –55°C to +125°C • CD54HC and CD74HC Types – Operation Control Voltage: 2 V to 6 V – Switch Voltage: 0 V to 10 V • CD54HCT and CD74HCT Types – Operation Control Voltage: 4.5 V to 5.5 V – Switch Voltage: 0 V to 10 V – Direct LSTTL Input Logic Compatibility VIL = 0.8-V Max, VIH = 2-V Min – CMOS Input Compatibility II ≤ 1 µA at VOL, VOH • On Products Compliant to MIL-PRF-38535, All Parameters Are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters.

2. Applications

• Digital Radio

• Signal Gating

• Factory Automation

• Televisions

• Appliances

• Programmable Logic Circuits

• Sensor

3 Description

The CDx4HC405x and CDx4HCT405x devices are digitally controlled analog switches that use silicon gate CMOS technology to achieve operating speeds similar to LSTTL with the low-power consumption of standard CMOS integrated circuits. These analog multiplexers and demultiplexers control analog voltages that may vary across the voltage supply range (for example, VCC to VEE). They are bidirectional switches that allow any analog input to be used as an output and vice versa. The switches have low ON resistance and low OFF leakages. In addition, all these devices have an enable control that, when high, disables all switches to their OFF state.

4.CD54HC4052, CD74HC4052, CD74HCT4052 J, N, D, NS, PW Packages 16-Pin CDIP, PDIP, SOIC, SO, TSSOP Top View

Q1. What is your terms of packing?

A: Generally, we pack our goods in neutral white boxes and brown cartons.

If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your MOQ?

A: We provide you small MOQ for each item, it depends your specific order!

Q3. Do you test or check all your goods before delivery?

A: Yes, we have 100% test and check all goods before delivery.

Q4: How do you make our business long-term and good relationship?

We keep good quality and competitive price to ensure our customers benefit ;

We respect every customer as our friend and we sincerely do business and make friends with them,It's not something that can be replaced.

Q5: How to contact us?
A: Send your inquiry details in the below,Click "Send"Now!!!

Shenzhen Hongxinwei Technology Co., Ltd

To adopt new technology,to produce products of quality,to offer high-class service.

Improve the management system continuously to meet customer requirement for high-quality products and services.

Why choose us?

• 100% new and originao with Advantage price
• High efficiency
• Fast Delivery
• Professional team service
• 10 Years Experience Electronic components
• Electronic components Agent
• Advantage logistic discount
• Excellent After-sales Service
