|Place of Origin:||CHINA|
|Minimum Order Quantity:||10PCS|
|Payment Terms:||T/T, Western Union|
|Product Type:||8-bit Microcontroller -MCU||Installation Style:||SMD/SMT|
|Package / Box:||TSSOP-20||Core:||STM8|
|Program Memory Size:||8 KB||Data Bus Width:||8 Bit|
|ADC Resolution:||10 Bit||Maximum Clock Frequency:||16 MHz|
|Number Of Inputs/outputs:||16 I/O||Data RAM Size:||1 KB|
|Operating Power Supply Voltage:||2.95 V To 5.5 V||Package:||Reel|
|Program Memory Type:||Flash||Data Ram Type:||RAM|
|Data ROM Size:||640 B||Data Rom Type:||EEPROM|
|Interface Type:||I2C, SPI, UART||Number Of ADC Channels:||5 Channel|
|Number Of Timers/counters:||7 Timer||Processor Series:||STM8S|
|Factory Packing Quantity:||2500|
power management ic,
integrated circuit components

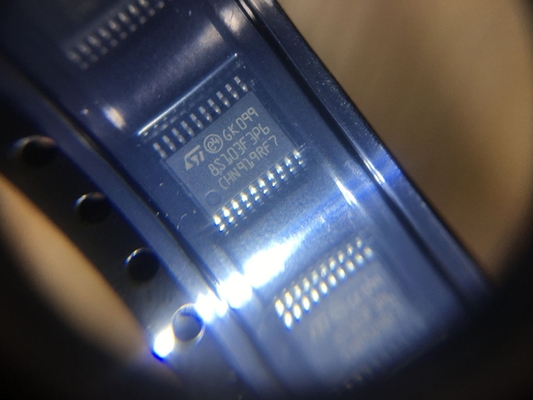

STMicroelectronics STM8S103F3P6TR 8 bit microcontroller MCU Access line MCU 8Kbyt 16 MHz
The STM8S103F2/x3 access line 8-bit microcontrollers offer 8 Kbyte Flash program
memory, plus integrated true data EEPROM. The STM8S microcontroller family reference
manual (RM0016) refers to devices in this family as low-density. They provide the following
benefits: performance, robustness, and reduced system cost.
Device performance and robustness are ensured by advanced core and peripherals made
in a state-of-the art technology, a 16 MHz clock frequency, robust I/Os, independent
watchdogs with separate clock source, and a clock security system.
The system cost is reduced thanks to an integrated true data EEPROM for up to 300 k
write/erase cycles and a high system integration level with internal clock oscillators,
watchdog and brown-out reset.
Full documentation is offered as well as a wide choice of development tools..
STM8S103F2/F3 TSSOP20/SO20 pinout
STM8S103F2/F3 UFQFPN20 pinout
