|Place of Origin:||MAL AYSIA|
|Minimum Order Quantity:||10pcs|
|Payment Terms:||T/T, Western Union|
|Features:||Cost Optimized||Product Type:||Operational Amplifier-Op Amp|
|Installation Style:||SMD/SMT||Package / Box:||SOIC-8|
|Number Of Channels:||2 Channel||Supply Voltage-max:||26 V|
|GBP-gain Bandwidth Product:||700 KHz||Output Current Per Channel:||30 MA|
|SR-Conversion Rate:||0.3 V/us||Vos-Input Bias Voltage:||7 MV|
|Supply Voltage-minimum:||3 V||Ib-Input Bias Current:||250 NA|
|Working Power Supply Current:||350 UA||Close:||No Shutdown|
|CMRR-Common Mode Rejection Ratio:||65 DB To 80 DB||En-input Voltage Noise Density:||40 NV/sqrt Hz|
|Package:||Reel||Amplifier Type:||High Gain Amplifier|
|Input Type:||Rail To Rail||Power Supply Type:||Single, Dual|
|Technology:||Bipolar||Dual Supply Voltage:||+/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V|
|Maximum Dual Supply Voltage:||+/- 13 V||Minimum Dual Supply Voltage:||+/- 1.5 V|
|Operating Power Supply Voltage:||3 V To 26 V, +/- 1.5 V To +/- 13 V||Subcategory:||Amplifier ICs|
|Vcm-Common Mode Voltage:||Negative Rail To Positive Rail-1.5 V||Voltage Gain DB:||100 DB|
micro integrated circuit,
integrated circuit components

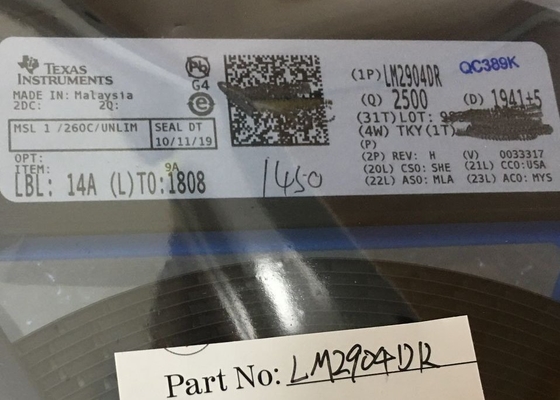

Texas Instruments LM2904DRG4 Operational Amplifier Op Amp Dual General Purpose Op Amp
Controlled Baseline One Assembly/Test Site, One FabricationSite Extended Temperature Performance of
−40°C to 125°C
Enhanced Diminishing Manufacturing
Sources (DMS) Support
Enhanced Product-Change Notification
Qualification Pedigree† ESD Protection Exceeds 500 V Per
MIL-STD-883, Method 3015; Exceeds 200 V
Using Machine Model (C = 200 pF, R = 0)
Low Supply-Current Drain Independent of
Supply Voltage . . . 0.7 mA Typ
† Component qualification in accordance with JEDEC and industry
standards to ensure reliable operation over an extended
temperature range. This includes, but is not limited to, Highly
Accelerated Stress Test (HAST) or biased 85/85, temperature
cycle, autoclave or unbiased HAST, electromigration, bond
intermetallic life, and mold compound life. Such qualification
testing should not be viewed as justifying use of this component
beyond specified performance and environmental limits.
Common-Mode Input Voltage Range
Includes Ground, Allowing Direct Sensing
Differential Input Voltage Range Equal to
Maximum-Rated Supply Voltage:
− Non-V Devices . . . ±26 V
− V-Suffix Devices... ±32 V
Low Input Bias and Offset Parameters:
− Input Offset Voltage . . . 3 mV Typ
− Input Offset Current . . . 2 nA Typ
− Input Bias Current . . . 20 nA Typ
Open-Loop Differential Voltage
Amplification . . . 100 V/mV Typ
Internal Frequency Compensation
This device consists of two independent, high-gain, frequency-compensated operational amplifiers designed
to operate from a single supply over a wide range of voltages. Operation from split supplies is possible as long
as the difference between the two supplies is 3 V to 26 V (3 V to 32 V for V-suffix devices), and VCC is at least
1.5 V more positive than the input common-mode voltage. The low supply-current drain is independent of the
magnitude of the supply voltage.
Applications include transducer amplifiers, dc amplification blocks, and all the conventional operational
amplifier circuits that now can be implemented more easily in single-supply-voltage systems. For example,
these devices can be operated directly from the standard 5-V supply used in digital systems and easily provide
the required interface electronics without additional ±5-V supplies.
