|Place of Origin:||CHINA|
|Minimum Order Quantity:||10PCS|
|Payment Terms:||T/T, Western Union|
|Product Type:||Reference Voltage||Installation Style:||SMD/SMT|
|Package/Box:||SOT-89-3||Reference Type:||Shunt Adjustable Precision References|
|Output Voltage:||Adjustable||Initial Accuracy:||2%|
|Temperature Coefficient:||92 PPM / C||Series VREF—Input Voltage—Max:||37 V|
|Shunt Current-maximum:||100 MA||Package:||Reel|
|Description/Function:||ADJUSTABLE PRECISION SHUNT REGULATOR||Height:||1.5MM|
|Length:||4.5MM||Operating Temperature Range:||-40 C To + 125 C|
|Shunt Current-minimum:||600 UA||Topology:||Shunt References|
|Maximum Output Voltage:||36V||Factory Pack Quantity:||1000|
micro integrated circuit,
integrated circuit components

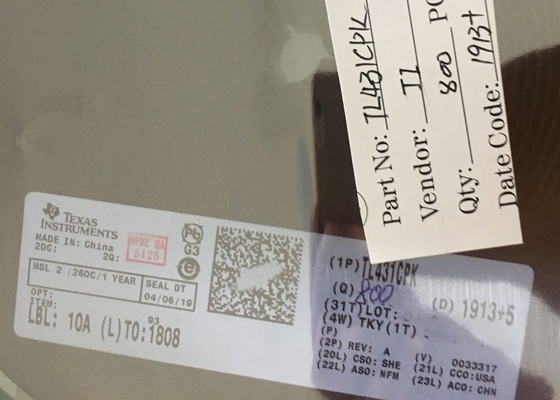

Texas Instruments TL431CPK Reference voltage Adj Shunt ADJUSTABLE PRECISION SHUNT REGULATOR
1• Reference Voltage Tolerance at 25°C – 0.5% (B Grade) – 1% (A Grade) – 2% (Standard Grade) • Adjustable Output Voltage: Vref to 36 V • Operation From −40°C to 125°C • Typical Temperature Drift (TL43xB) – 6 mV (C Temp) – 14 mV (I Temp, Q Temp) • Low Output Noise • 0.2-Ω Typical Output Impedance • Sink-Current Capability: 1 mA to 100 mA
• Adjustable Voltage and Current Referencing • Secondary Side Regulation in Flyback SMPSs • Zener Replacement • Voltage Monitoring • Comparator with Integrated Reference
The TL431LI / TL432LI are pin-to-pin alternatives to TL431 / TL432. TL43xLI offers better stability, lower temperature drift (VI(dev)), and lower reference current (Iref) for improved system accuracy. The TL431 and TL432 devices are three-terminal adjustable shunt regulators, with specified thermal stability over applicable automotive, commercial, and military temperature ranges. The output voltage can be set to any value between Vref (approximately 2.5 V) and 36 V, with two external resistors. These devices have a typical output impedance of 0.2 Ω. Active output circuitry provides a very sharp turn-on characteristic, making these devices excellent replacements for Zener diodes in many applications, such as onboard regulation, adjustable power supplies, and switching power supplies. The TL432 device has exactly the same functionality and electrical specifications as the TL431 device, but has different pinouts for the DBV, DBZ, and PK packages. Both the TL431 and TL432 devices are offered in three grades, with initial tolerances (at 25°C) of 0.5%, 1%, and 2%, for the B, A, and standard grade, respectively. In addition, low output drift versus temperature ensures good stability over the entire temperature range. The TL43xxC devices are characterized for operation from 0°C to 70°C, the TL43xxI devices are characterized for operation from –40°C to 85°C, and the TL43xxQ devices are characterized for operation from –40°C to 125°C.
Parameter Measurement Information
Detailed Description Overview
This standard device has proven ubiquity and versatility across a wide range of applications, ranging from power to signal path. This is due to it's key components containing an accurate voltage reference & opamp, which are very fundamental analog building blocks. TL43xx is used in conjunction with it's key components to behave as a single voltage reference, error amplifier, voltage clamp or comparator with integrated reference. TL43xx can be operated and adjusted to cathode voltages from 2.5V to 36V, making this part optimum for a wide range of end equipments in industrial, auto, telecom & computing. In order for this device to behave as a shunt regulator or error amplifier, >1mA (Imin(max)) must be supplied in to the cathode pin. Under this condition, feedback can be applied from the Cathode and Ref pins to create a replica of the internal reference voltage. Various reference voltage options can be purchased with initial tolerances (at 25°C) of 0.5%, 1%, and 2%. These reference options are denoted by B (0.5%), A (1.0%) and blank (2.0%) after the TL431 or TL432. TL431 & TL432 are both functionaly, but have separate pinout options. The TL43xxC devices are characterized for operation from 0°C to 70°C, the TL43xxI devices are characterized for operation from –40°C to 85°C, and the TL43xxQ devices are characterized for operation from –40°C to 125°C
Functional Block Diagram
