Name: HY11P52B HY11P Series 8 Bit Mixed Signal Microcontrollers Embedded High Resolution
Brand: HYCON
SKU: HY11P52B

Home Products Electronic Integrated Circuits

HY11P52B HY11P Series 8 Bit Mixed Signal Microcontrollers Embedded High Resolution

Product Details:

Place of Origin:	TAIWAN
Brand Name:	HYCON
Certification:	ROHS
Model Number:	HY11P52B

Payment & Shipping Terms:

Minimum Order Quantity:	100PCS
Price:	Negotiation
Packaging Details:	1000PCS/BOX
Delivery Time:	3days
Payment Terms:	T/T, Western Union
Supply Ability:	30000PCS/MOUTH

Contact Now

Detailed Product Description

High Light:

power management ic

micro integrated circuit

HY11P52B HY11P Series: 8-bit Mixed Signal Microcontrollers with Embedded High Resolution ΣΔ ADC

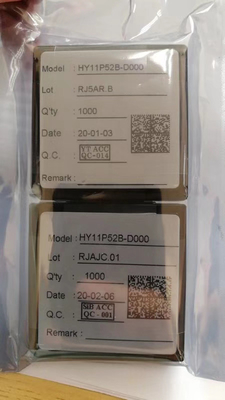

HY11P52B HY11P Series 8 Bit Mixed Signal Microcontrollers Embedded High Resolution 0

Applications

Measurement Devices
Medical Devices
Weighing
Digital Sensor
Industrial Controller

Product Features

Operation voltage: 2.4V to 3.6V (whole system)
Temperature range: -40℃ to +85℃
8-bit RISC architecture
46/66 powerful instruction set
8×8 hardware multiplexer
Support crystal oscillator up to 8MHz
Built-in precise 2MHz RC oscillator
Max. 4×40 LCD driver
Low, 0.65μA (typ.) sleep current
Built-in EPROM 64 word
24-bit fully differential ΣΔ analog-to-digital converter (ADC)
- Ultra low input referred noise 100nVrms
- ENOB up to 20-bit, 18-bit noise-free
- Rail-to-rail input range
- Built-in input buffer
- Conversion rate up to ~1kSPS
x1/4, x1/2…x128 programmable gain amplification with < 5ppm/℃ gain drift
±2℃ accuracy temperature sensor
Built-in low noise OPAMP

HY11P Series

Model No.	VDD	Internal Clock	System Clock	Program Memory (word)	Data Memory (byte)	Built-in EPROM (word)	ADC ENOB (bit x ch.)	Sample Rate	TPS	OPAMP (type x ch.)	RTC	LCD (com x seg )	I/O	Timer		PWM	Serial Interface	Package
Model No.	VDD	Internal Clock	System Clock	Program Memory (word)	Data Memory (byte)	Built-in EPROM (word)	ADC ENOB (bit x ch.)	Sample Rate	TPS	OPAMP (type x ch.)	RTC	LCD (com x seg )	I/O	8-bit	16-bit	PWM	Serial Interface	Package
HY11P12*	2.2V~ 3.6V	28KHZ 2MHZ	28KHZ~ 8MHZ	2k	128	–	20-bitx4	8sps~ 977sps	Y	–	Y	4×12	4xI +10xIO	1	–	–	–	LQFP 44
HY11P13	2.2V~ 3.6V	28KHZ 2MHZ	28KHZ~ 8MHZ	4k	256	–	20-bitx8	8sps~ 977sps	Y	LNAx1	Y	4×20	4xI +10xIO	2	1	8-bit x1	SPI	LQFP 64
HY11P14	2.2V~ 3.6V	28KHZ 2MHZ	28KHZ~ 8MHZ	8k	512	–	20-bitx8	8sps~ 977sps	Y	LNAx1	Y	4×29	4xI +10xIO	2	1	8-bit x1	SPI EUART	LQFP 64
HY11P14	2.2V~ 3.6V	28KHZ 2MHZ	28KHZ~ 8MHZ	8k	512	–	20-bitx8	8sps~ 977sps	Y	LNAx1	Y	4×40	8xI +20xIO	2	1	8-bit x4	SPI EUART	LQFP 100
HY11P23	2.2V~ 3.6V	28KHZ 2MHZ	28KHZ~ 8MHZ	4k	256	–	20-bitx8	8sps~ 977sps	Y	LNAx1	Y	–	10xI +12xIO	2	1	8-bit x1	SPI EUART	LQFP 32 QFN 32
HY11P23	2.2V~ 3.6V	28KHZ 2MHZ	28KHZ~ 8MHZ	4k	256	–	20-bitx8	8sps~ 977sps	Y	LNAx1	Y	–	7xI +12xIO	2	1	8-bit x1	SPI EUART	SSOP 28
HY11P24	2.2V~ 3.6V	28KHZ 2MHZ	28KHZ~ 8MHZ	8k	512	–	20-bitx8	8sps~ 977sps	Y	LNAx1	Y	–	18xI +20xIO	2	1	8-bit x4	SPI EUART	LQFP 44 LQFP 48
HY11P32*	2.2V~ 3.6V	28KHZ 2MHZ	28KHZ~ 2MHZ	2k	128	64	20-bitx3	8sps~ 977sps	–	–	–	4×12	4xI +8xIO	1	–	–	–	LQFP 44 LQFP 48
HY11P33	2.2V~ 3.6V	28KHZ 2MHZ	28KHZ~ 8MHZ	4k	256	64	20-bitx3	8sps~ 1953sps	–	–	Y	4×20	4xI +8xIO	2	–	8-bit x1	–	LQFP 64
HY11P35	2.2V~ 3.6V	28KHZ 2MHZ	28KHZ~ 8MHZ	6k	256	64	20-bitx8	8sps~ 977sps	Y	LNAx1	Y	4×32	12xI +14xIO	2	1	8-bit x4	–	LQFP 100
HY11P36	2.2V~ 3.6V	28KHZ 2MHZ	28KHZ~ 8MHZ	4k	256	64	20-bitx3	8sps~ 1953sps	–	–	Y	4×32	4xI +8xIO	2	–	8-bit x1	–	LQFP 64
HY11P41	2.2V~ 3.6V	28KHZ 2MHZ	28KHZ~ 2MHZ	2k	128	64	20-bitx4	8sps~ 1953sps	Y	–	–	–	6xI +5xIO	2	1	8-bit x1	–	SSOP 16 SOP 16 QFN 16
HY11P42	2.2V~ 3.6V	28KHZ 2MHZ	28KHZ~ 8MHZ	2k	128	64	20-bitx7	8sps~ 977sps	Y	–	Y	–	7xI +8xIO	2	–	8-bit x1	EUART	SSOP 28
HY11P42	2.2V~ 3.6V	28KHZ 2MHZ	28KHZ~ 8MHZ	2k	128	64	20-bitx7	8sps~ 977sps	Y	–	Y	–	7xI +12xIO	2	–	8-bit x1	EUART	TSSOP 28 QFN 24
HY11P52* HY11P52B*	2.2V~ 3.6V	28KHZ 2MHZ	28KHZ~ 2MHZ	2k	128	64,LV	20-bitx3	8sps~ 1953sps	–	–	–	4×12	4xI +8xIO	1	–	–	–	LQFP 48
HY11P54	2.2V~ 3.6V	28KHZ 2MHZ	28KHZ~ 8MHZ	8k	256	64,LV	20-bitx7	8sps~ 1953sps	–	LNAx1	Y	4×32	9xI +9xIO	2	–	8-bit x1	EUART	LQFP 64
							20-bitx8					4×32	13xI +12xIO					LQFP 100
							20-bitx8					–	11xI +11xIO					QFN 48

	VDD	Internal Clock	System Clock	Program Memory (word)	Data Memory (byte)	Built-in EPROM (word)	ADC ENOB (bit x ch.)	Sample Rate	TPS	OPAMP (type x ch.)	RTC	LCD (com x seg )	I/O	Timer		PWM	Serial Interface	Package
	VDD	Internal Clock	System Clock	Program Memory (word)	Data Memory (byte)	Built-in EPROM (word)	ADC ENOB (bit x ch.)	Sample Rate	TPS	OPAMP (type x ch.)	RTC	LCD (com x seg )	I/O	8-bit	16-bit	PWM	Serial Interface	Package

Remark:
ADC:24-bit Sigma Delta ADC.
OPAMP:LNA (Low Noise Amplifier).
TPS:Internal temperature sensor.
RTC:Support external 32768Hz crystal or 450KHz~8MHz ceramic resonator or 1MHz~8MHz crystal oscillator
Timer:Timer A(8-bit) support multi-segment interrupt time setting; Timer B(16-bit) support Capture Compare function;
Timer C (8-bit) support PWM / PFD function.
*:H08B instruction, the main difference is that the instruction set does not contain 8×8 hardware multiplier, 16-bit table
read instruction, conditional skip instruction and stack manipulation instructions.
