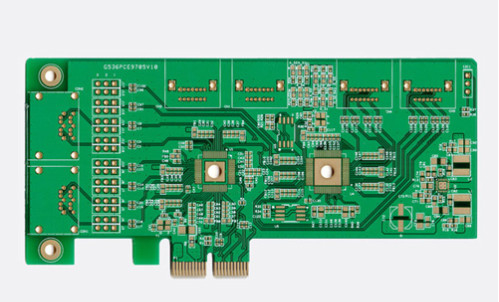

4 Layer Immersion Gold PCB 200mm*110mm 1.6mm Thickness Through-Hole Soldering

4 Layer Immersion Gold PCB 200mm*110mm 1.6mm Thickness Through-Hole Soldering

  • 4 Layer Immersion Gold PCB 200mm*110mm  1.6mm  Thickness Through-Hole Soldering
4 Layer Immersion Gold PCB 200mm*110mm  1.6mm  Thickness Through-Hole Soldering
Product Details:
Place of Origin: China
Brand Name: HXW
Certification: Rohs
Model Number: 4 Layer Immersion Gold PCB
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 1PCS/BOX
Delivery Time: 2-3WEEKS
Payment Terms: T/T, Western Union
Supply Ability: 1000PCS/MONTH
Contact Now
Detailed Product Description
Layer: 4 Layer Material: FR-4
Board Thickness: 1.6mm Size: 200mm*110mm
Surface Finish: Immersion Gold Board Thickness Tolerance: ±0.1mm
High Light:

prototype circuit board


surface mount prototype board

4 Layer Immersion Gold PCB



Specialize in PCBprototype over 10 years
Prototype PCB lead time as quick as 24 hours
The most favorable price in whole industry
Quick turn PCB assembly turnkey services
Start your PCBA order from 1pcs


On-time delivery by DHL & FedEx
Professional technical team provide one-to-one service
Professional QC team, 100% Guaranteed quality

Prototype Printed Circuit Boards Meet High-Quality Standards
ABP offers rapid PCB prototyping services for quick-turn PCB at high quality and low cost. We're fully compliant with ISO9001:2008 quality management systems, and we have an in-house quality control department to verify that all work meets each regulation depicted by the high standards.
Depending on your custom requirements, we can prototype your PCB within 3-7 days, compared to 6-18 days of Standard PCB service.
Check out our circuit board prototype capabilities in the following table:

Item Manufacture Capability
Layer 2-30 Layer
Materials FR-4,High-Tg,halogen Free,Rogers,CEM-1,CEM-3,Rigid-flex
Board Thickness
Board Thickness Tolerance ±0.1mm
Min. Track Width 3mil
Min. Track Space 3mil
External Cu Thickness 0.5-6OZ
Internal Cu Thickness 0.5-6OZ
Drilling Bit Size (CNC) 0.15-6.50mm
Finished Hole Dimension 0.1-6.0mm
The Hole Tolerance ±0.05mm
Hole Position Tolerance ±0.05mm
Aspect Ration 10:1
Max. Panel Dimension 646mmX1200mm
Solder Mask Green, Blue, White, Black, Red, Yellow
Impedance Control ±10%
Surface Finishing HASL (Lead Free), Immersion Gold, OSP, Immersion Silver
Special Requirement Buried & Blind holes, Counter Sink, Counter Bore, Regid-flex Board


Q1. What is your terms of packing?

A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.


Q2. What is your MOQ?

A: We provide you small MOQ for each item, it depends your specific order!


Q3. Do you test or check all your goods before delivery?

A: Yes, we have 100% test and check all goods before delivery.


Q4: How do you make our business long-term and good relationship?

We keep good quality and competitive price to ensure our customers benefit ;

We respect every customer as our friend and we sincerely do business and make friends with them,It's not something that can be replaced.


Q5: How to contact us?
A: Send your inquiry details in the below,Click "Send"Now!!!
