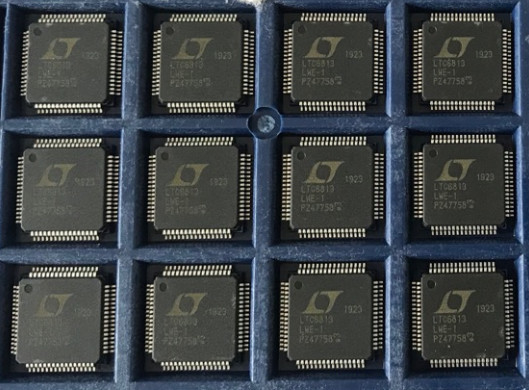

Multi Cell Battery Stack Monitor 18 Channel Addressable IsoSPI Interface

Multi Cell Battery Stack Monitor 18 Channel Addressable IsoSPI Interface

  • Multi Cell Battery Stack Monitor 18 Channel  Addressable IsoSPI Interface
  • Multi Cell Battery Stack Monitor 18 Channel  Addressable IsoSPI Interface
  • Multi Cell Battery Stack Monitor 18 Channel  Addressable IsoSPI Interface
  • Multi Cell Battery Stack Monitor 18 Channel  Addressable IsoSPI Interface
Multi Cell Battery Stack Monitor 18 Channel  Addressable IsoSPI Interface
Product Details:
Place of Origin: TAIWAN
Brand Name: Analog Devices / Linear Technology
Certification: ROHS
Model Number: LTC6813HLWE-1#3ZZPBF
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: 800pcs/box
Delivery Time: 3days
Payment Terms: T/T, Western Union
Supply Ability: 4000pcs/month
Contact Now
Detailed Product Description
Battery Type: Multiple Cell Output Voltage: 5.7V
Operating Supply Voltage: 60V Package: ELQFP-64
Packaging: Tray Product Type: Battery Management
High Light:

power management ic

,

integrated circuit components

LTC6813HLWE-1#3ZZPBF Battery Management 18 Channel Multicell Battery Stack Monitor with Addressable isoSPI Interface



FEATURES DESCRIPTION Multicell Battery Monitor The LTC®6813-1 is a multicell battery stack monitor that measures up to 18 series connected battery cells with a total measurement error of less than 2.2mV. The cell measurement range of 0V to 5V makes the LTC6813-1 suitable for most battery chemistries. All 18 cells can be measured in 290µs, and lower data acquisition rates can be selected for high noise reduction. Multiple LTC6813-1 devices can be connected in series, permitting simultaneous cell monitoring of long, high voltage battery strings. Each LTC6813-1 has an isoSPI interface for high speed, RF immune, long distance communications. Multiple devices are connected in a daisy chain with one host processor connection for all devices. This daisy chain can be operated bidirectionally, ensuring communication integrity, even in the event of a fault along the communication path. The LTC6813-1 can be powered directly from the battery stack or from an isolated supply. The LTC6813-1 includes passive balancing for each cell, with individual PWM duty cycle control for each cell. Other features include an onboard 5V regulator, nine general purpose I/O lines and a sleep mode, where current consumption is reduced to 6µA. Cell 18 Measurement Error vs Temperature APPLICATIONS n Measures Up to 18 Battery Cells in Series n 2.2mV Maximum Total Measurement Error n Stackable Architecture Supports 100s of Cells n Built-In isoSPI™ Interface n 1Mb Isolated Serial Communications n Uses a Single Twisted Pair, Up to 100 Meters n Low EMI Susceptibility and Emissions n Bidirectional for Broken Wire Protection n 290µs to Measure All Cells in a System n Synchronized Voltage and Current Measurement n 16-Bit Delta-Sigma ADC with Programmable 3rd Order Noise Filter n Engineered for ISO 26262-Compliant Systems n Passive Cell Balancing Up to 200mA (Max) with Programmable Pulse-Width Modulation n 9 General Purpose Digital I/O or Analog Inputs n Temperature or Other Sensor Inputs n Configurable as an I2C or SPI Master n 6µA Sleep Mode Supply Current n 64-Lead eLQFP Package n Electric and Hybrid Electric Vehicles n Backup Battery Systems n Grid Energy Storage n High Power Portable Equipment All registered trademarks and trademarks are the property of their respective owners.



Multi Cell Battery Stack Monitor 18 Channel  Addressable IsoSPI Interface 0


Q1. What is your terms of packing?

A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.



Q2. What is your MOQ?

A: We provide you small MOQ for each item, it depends your specific order!



Q3. Do you test or check all your goods before delivery?

A: Yes, we have 100% test and check all goods before delivery.



Q4: How do you make our business long-term and good relationship?

We keep good quality and competitive price to ensure our customers benefit ;

We respect every customer as our friend and we sincerely do business and make friends with them,It's not something that can be replaced.



Q5: How to contact us?
A: Send your inquiry details in the below,Click "Send"Now!!!



Multi Cell Battery Stack Monitor 18 Channel  Addressable IsoSPI Interface 1
