Original UBLOX GPS Module NEO-6M High Precision GPS Receiver Module

Original UBLOX GPS Module NEO-6M High Precision GPS Receiver Module

  • Original UBLOX GPS Module  NEO-6M High Precision GPS Receiver Module
Original UBLOX GPS Module  NEO-6M High Precision GPS Receiver Module
Product Details:
Brand Name: UBLOX
Certification: ROHS
Model Number: NEO-6M
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: 1PCS
Delivery Time: 1WEEK
Payment Terms: T/T
Supply Ability: 3000PCS+2WEEKS
Contact Now
Detailed Product Description
Voltage: 2.7V – 3.6V Power Consumption: <80mW
Standby Power: 1.8V, 30uA Size: 16.0*12.2mm*2.4mm
Warm Start: 27s Operating Temperature: -40 ℃ To + 85 ℃
High Light:

smallest gps module


usb gps module

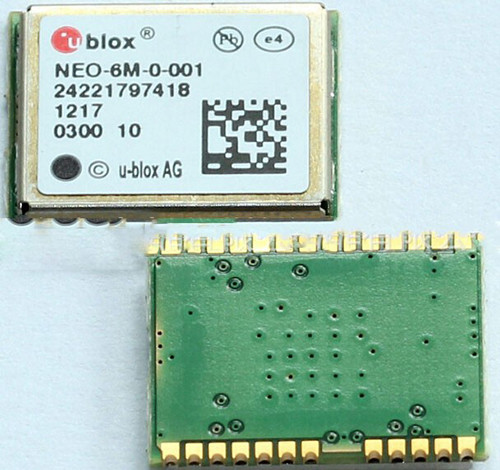

Original U-blox GPS Module NEO-6M-0-001


NEO-6 module series brings the high performance of the u-blox 6 position engine to the miniature NEO form factor. u-blox 6 has been designed with low power consumption and low costs in mind. Intelligent power management is a breakthrough for low-power applications.

These receivers combine a high level of integration capability with flexible connectivity options in a small package. This makes them perfectly suited for mass-market end products with strict size and cost requirements.

The LEA-6A and LEA-6S are ROM-based solution, whilst the LEA-6H comes with built in Flash EPROM, allowing for future firmware updates.



· UART, USB, DDC (I2C compliant) and SPI interfaces

· Available in Crystal and TCXO versions

· Onboard RTC crystal for faster warm and hot starts

· 1.8 V and 3.0 V variants


· u-blox 6 position engine:

· Navigate down to 162 dBm and 148 dBm coldstart

· Faster acquisition with AssistNow Autonomous

· Configurable power management

· Hybrid GPS/SBAS engine (WAAS, EGNOS, MSAS)

· Anti-jamming technology

· Simple integration with u-blox wireless modules

· A-GPS: AssistNow Online and AssistNow Offline services, OMA SUPL compliant

· Backward compatible (hardware and firmware); easy migration from NEO-5 family or NEO-4S

· LCC package for reliable and cost effective manufacturing

· Compatible with u-blox GPS Solution for Android

· Based on GPS chips qualified according to AEC-Q100

· Manufactured in ISO/TS 16949 certified sites

· Qualified according to ISO 16750




· Voltage: 2.7V – 3.6V

· Power consumption <80mW @ 1.8V

· 120mW @ 3.0V

· Standby power 1..8V, 30uA

· Antenna type source with passive

· Operating temperature-40 ℃ to + 85 ℃

· Storage temperature:-40 ℃ to + 85 ℃

· Size 16.0*12.2mm*2.4mm

· Precision

· Location 2.5MCEP

· SBAS 2.0mCEP

· Captured cold start 29s

· Warm start 27s

· Secondary boot <3s

· Warm boot <1s

· Sensitivity

· Capture -162dBm

· Track -147dBm

· Cold boot -146dBm


· Supports AssistNow Online and AssistNow Offline

· Run restriction

· 515m/s speed (1000)

· Serial port 1 UART interface

· 1 USB V2.0 full speed 12Mbit/s

· 1 DDC interface

· 1 SPI interface

· Serial and I/O voltage 3V logic level

· Protocol NMEA, UBX binary

· Digital I/O interface configurable time pulse

· 1 EXTINT input interface
