| MOQ: | 10PCS |
| Price: | Negotiable |
| Standard Packaging: | 3000PCS/REEL |
| Delivery Period: | 2-3DAYS |
| Payment Method: | T/T, Western Union |
| Supply Capacity: | 12000PCS/WEEK |

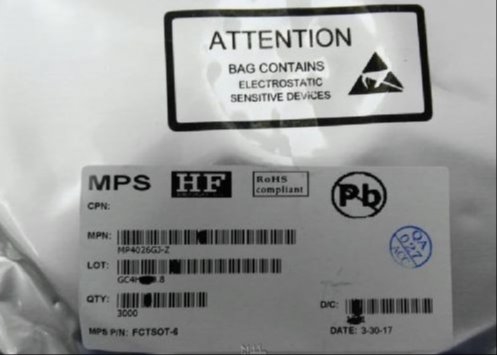

MP4026GJ-Z IGBT Driver LED Lighting Drivers Monolithic Power Systems
1.DESCRIPTION
The MP4026 is a primary-side-control, offline LED controller that achieves high-power factor and accurate LED current for isolated, single-power-stage lighting applications in a tiny TSOT23-6 package. It is the next generation of the successful MP4021A. The proprietary real-current-control method accurately controls LED current from primary-side information with good line and load regulation. The primary-side-control eliminates the secondary-side feedback components and the opto-coupler to significantly simplify LED-lighting-system design. The MP4026 integrates power-factor correction and works in valley switching mode to reduce MOSFET switching losses. The MP4026’s multiple protection features greatly enhance system reliability and safety. These features include over-voltage protection, short-circuit protection, primary-side over-current protection, brown out protection, cycle-by-cycle current limiting, VCC under-voltage lockout, and auto-restart over-temperature protection
2FEATURES
• Real-Current Control without Secondary-Feedback Circuit
• Good Line/Load Regulation
• High Power Factor (≥0.9) over Universal Input Voltage
• Valley Switching Mode for Improved Efficiency
• Brown-Out Protection
• Over-Voltage Protection
• Short-Circuit Protection
• Over-Temperature Protection
• Primary-Side Over-Current Protection
• Cycle-by-Cycle Current Limit
• Input UVLO
• Available in TSOT23-6
3.APPLICATIONS
• Industrial and Commercial Lighting
• Residential Lighting
4.TYPICAL APPLICATION CIRCUIT
5.PACKAGE REFERENCE
6.PIN FUNCTIONS
7.FUNCTION DIAGRAM
8.Why choose us?
100% new and originao with Advantage price
High efficiency
Fast Delivery
Professional team service
10 Years Experience Electronic components
Electronic components Agent
Advantage logistic discount
Excellent After-sales Service
|
|
