|Place of Origin:||China|
|Minimum Order Quantity:||10pcs|
|Payment Terms:||T/T, Western Union|
|Body Size:||15 Mm X 15 Mm (0.59 In. X 0.59 In.)||Lead Pitch:||0.65 Mm And 0.4 Mm Hybrid Pitch|
|Operating Temperature:||0°C–70°C||Voltage:||0.8 V Core Voltage,1.8 V Or 3.3 V I/O Voltage|
|Interface Voltage:||1.2 V DDR4 SDRAM ,1.1 V LPDDR4 SDRAM|
system on a chip,
ip camera soc

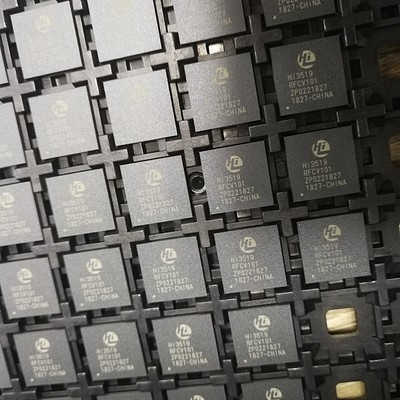

Hi3519AV100 Advanced intelligent IP Camera Soc
1.9 W power consumption in a typical scenario for 4K x
2K (3840 x 2160)@30 fps H.265 encoding+neural network algorithm
− A neural network inference engine (NNIE), a high-performance DSP, and multiple CV acceleration
engines that facilitate customers' algorithm development for achieving product differentiation
− Multiple neural network options
− 2.0 TOPS computing performance
− Complete APIs and toolchains
− Multiple applications such as face
detection/recognition and target detection/tracking
4K@60 fps Encoding
4K x 2K (3840 x 2160)@60 fps or 1080p@240 fps
Up to 5-channel sensor inputs, supporting applications such as panoramic camera and UAVs
Hardware-based Multi-Channel Video Stitching 2-channel 3K x 3K (3000 x 3000)@30 fps or 4-channel 1080p@30 fps stitching and recording
PCIe, USB 3.0, and SDIO 3.0 interfaces that facilitate
customers' extension of external functional modules
Hi3519A V100 is a high-performance and low-power 4K Smart IP Camera SoC designed for IP cameras, action cameras,
panoramic cameras, rear view mirrors, and UAVs. Hi3519A V100 introduces H.265/H.264 encoding and decoding, with performance up to 4K x 2K@60 fps and 1080p@240 fps. Integrating with the HiSilicon fourth-generation ISP, Hi3519A V100 provides WDR, multi-level NR, 6DoF DIS, and multiple image enhancement and correction algorithms, ensuring professional image quality. Hi3519A V100 also supports 4K raw data output, facilitating post editing. With the advanced low-power process and architecture design, Hi3519A V100 provides users with long-lasting battery life.
Hi3519A V100 integrates a powerful programmable
neural network inference engine and a vector DSP, backing the
application of multiple intelligent algorithms.
Hi3519A V100 supports multi-sensor inputs and
introduces a built-in high-performance AVS engine to implement 4K 2-pipe to 4-pipe real-time panoramic video stitching.
With the hardware-based 6DoF DIS, Hi3519A V100 has reduced its dependence on the mechanical head during 4K@60
fps video recording.
Hi3519A V100 features efficient and ample computing
resources to assist customers in developing industry and consumer applications. Backed by the dual-core A53 processor and the DSP, Hi3519A V100 offers the dual-system solution, enabling fast startup, real-time performance, and connections with rich peripheral drives.
Hi3519A V100 uses the advanced 12 nm low-power process and miniaturization package and supports
DDR4/LPDDR4 SDRAMs, allowing the product miniaturization design.
With the stable and easy-to-use mobile SDK design provided by HiSilicon, Hi3519A V100 can assist customers in
rapid product mass production.
