Shenzhen Hongxinwei Technology Co., Ltd
To adopt new technology,to produce products of quality,to offer high-class service.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE、ROHS |
| Model Number: | MU609 Mini |
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 50pcs/box |
| Delivery Time: | 3-5days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 3600PCS/MONTH |
| Device Type: | 3G Network Card | Product Name: | MU609 MINI PCIE |
|---|---|---|---|
| Power Range: | 3-3.6V | Network Type: | WCDMA / GSM / EDGE |
| Frequency Range: | HSPA/UMTS 850/900/1900/2100MHz | GSM / EDGE: | 1800/1900MHZ |
| Dimensions: | 30.4*51*3.4mm | Weight: | 12g |
| High Light: | lte gsm module,quectel 3g module |
||

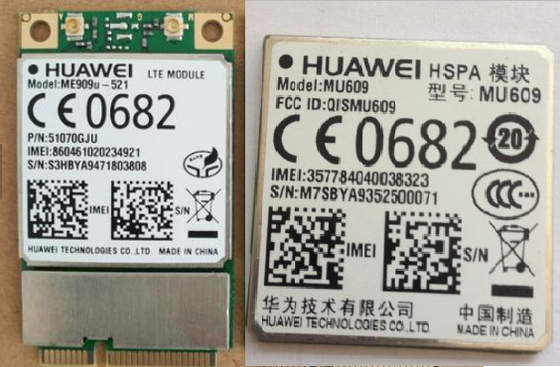

MU609 Mini PCI Express - 3G/HSPA M2M 14.4Mbps GPS wireless for Huawei WCDMA
| Size |
Height 30.4mm |
Width 51mm |
Depth 3.4mm |
| Form Factor | Mini-PCIe | ||
| Bands | HSPA+/UMTS quad-band 850/900/1900/2100 MHz | GSM/GPRS quad-band 850/900/1800/1900 MHz | |
| Data Transfer Rate | Downlink:14.4 Mbps | Uplink: 5.76 Mbps | |
| Interface | 3 Antenna connectors PCIe interface |
USB 2.0 High speed PCM Voice(AT&T version cannot support) |
SIM Interface (1.8V/3.0V) Power supply Reset |
| Power Supply | 3.0 V to 3.6 V (typical: 3.3 V) | ||
| GPS/Glonass | GPS | A-GPS | |
| Special Features | FOTA | STA | |
| Operating System | Linux, Android | ||
| Temp Range | Normal Operation: -20℃ to 70℃ | Extended Operation: -30℃ to 70℃ |
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your MOQ?
A:We provide you small MOQ for each item, it depends your specific order!
Q3. Do you test or check all your goods before delivery?
A: Yes, we have 100% test and check all goods before delivery.
Q4: How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit ;
We respect every customer as our friend and we sincerely do business and make friends with them,It's not something that can be replaced.
Q5: How to contact us?
A: Send your inquiry details in the below,Click "Send"Now!!!
Contact Person: Mr. 段
Tel: 86-755-82715827
Fax: 86-755-22678033
