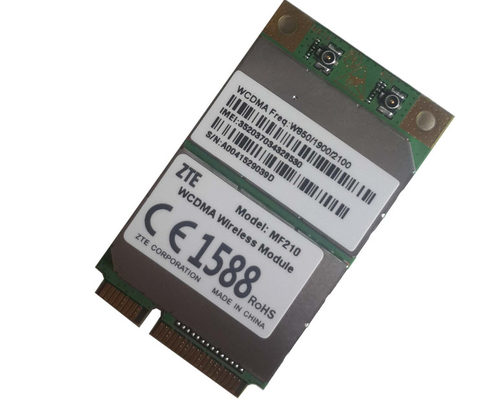

Internal ZTE WCDMA 3G Module Low Power Consumption MF210V1 MF210V2

ZTE MF210V1 MF210V2 Mbps Wcdma 3G module

General Features

● PCI Express Mini-Card
● Dimensions: 51 mm x 30 mm x 4.71 mm
● Weight: approx. 11grams
● Supply voltage range 3.2V-3.6V(3.3V is recommended)
● Rx Diversity
● Frequency Band
– WCDMA/HSDPA 2100/1900/850(900)MHz
– GSM/GPRS/EDGE 850/900/1800/1900MHz

Electrical & Sensitivity

● Transmit Power:
–UMTS Bands: 24 +1/-3dBm (Power Class 3)
–GSM/GPRS 850/900: 33±2dBm (Power Class 4)
–GSM/GPRS 1800/1900: 30±2dBm (Power Class 1)
–EDGE 850/900: 27±3dBm (Power Class E2)
–EDGE 1800/1900: 26 -4/+3dBm (Power Class E2)
● Receiving sensitivity:
–WCDMA2100: ≤-108 dBm
–WCDMA1900/850: ≤-106 dBm
–WCDMA900: ≤-105 dBm
–GSM850/900/1800/1900: ≤-103.5 dBm
● Power Consumption:
–Standby (Typical): 1.8mA@UMTS
–Standby (Typical): 4.6mA@GSM
–Average: 397-510mA @ UMTS, Max. Power
–Average: 245-370mA @ GSM, Max. Power
–Average: 300-450mA @ GPRS, Max. Power
–Average: 365-475mA @ EDGE, Max. Power

Environmental

● Operation temperature: -30°C to +75°C
● Extreme Operating temperature : -40°C to +85°C
● Storage temperature: -40°C to +85°C
● Humidity: 5%~ 95%

Data Features

● GSM CS: UL 9.6kbps/DL 9.6kbps
● GPRS: Multi-slot Class 10
● EDGE: Multi-slot Class 12
● WCDMA CS: UL 64kbps/DL 64kbps
● WCDMA PS: UL 384 kbps /DL 384 kbps
● HSDPA: DL 7.2 Mbps (Category 8)
● HSUPA: UL 5.76 Mbps (Category 6)

SMS Features

● Support Text and PDU mode
● Point to point MO and MT
● SMS Status Report SMS centre address setting
● Management of SMS: read, write, send, receive, delete, storage status, SMS list, new SMS alert

Interfaces

● USB 2.0 High speed interface up to 480 Mbps
● SIM card interface (1.8/3.0V DC)
● Industry UART (one 8-wires UART)
● SPI Interface
● Antenna (RF Connector for Primary and Diversity/GPS)
● LED interfaces (x1, Indication Net status)
● W_Disable
● Wake
● Reset

Applications

● Support embedded TCP & UDP protocols
● GPS & A-GPS & LBS
● Network & SIM Lock
● SMS & MMS
● Open RIL code
● STK & USSD
● Improved power-saving mode
● SIM Phonebook
● USB Selective Suspend
● RAS / ECM
● Support protocols PAP and CHAP used for PPP connection
● Control Via AT Commands according to 3GPP TS27.005, 27.007 and ZTEWelink extended AT commands

Driver & Tools

● USB drivers for Windows XP, Windows Vista, Windows 7 & 8, Windows CE, Windows Mobile, Linux, Android
● Diag-log Tool for Windows, Android, Linux
● Firmware Update via USB

Approvals & Certifications

● CCCC, SRRC, CE, FCC, RoHS, PTCRB, REACH
