FS100R07N2E4 IGBT Module 100A 650V For Temperature Detection

FS100R07N2E4 IGBT Module 100A 650V For Temperature Detection

  • FS100R07N2E4 IGBT Module 100A 650V For Temperature Detection
  • FS100R07N2E4 IGBT Module 100A 650V For Temperature Detection
FS100R07N2E4 IGBT Module 100A 650V For Temperature Detection
Product Details:
Place of Origin: TAIWAN
Brand Name: Infineon Technologies
Certification: ROHS
Model Number: FS100R07N2E4
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 10PCS/box
Delivery Time: 2-3DAYS
Payment Terms: T/T, Western Union
Supply Ability: 7000pccs/week
Contact Now
Detailed Product Description
Configuration: Sixpack Dimensions (length): 107.5 Mm
Dimensions (width): 45.0 Mm Housing: EconoPACK™ 2
Technology: IGBT4 - E4 VCE(sat) (Tvj=25°C Typ): 1.55 V
VCES / VRRM: 650.0 V VF (Tvj=25°C Typ): 1.55 V
Voltage Class: 650.0 V
High Light:

FS100R07N2E4 IGBT Module


100A IGBT Module


650V NTC Temperature Sensor

       FS100R07N2E4 IGBT Modules IGBT Module 100A 650V

1.The EasyPIM™/EasyPACK as well as the EconoPIM™/EconoPACK™ families were developed in order to have a cost-effective compact design as well as simplified and reliable mounting. With these modules, we offer an optimized product generation for low- and medium-power industrial drives.The Easy family with its EasyPIM™, EasyPACK and EasyDUAL configurations covers the full power range from IC 6 A up to 200 A at 6 00 V/650 V/1200 V. The modules are without base plates and include the newest IGBT4 technology. The screw clamp provides a new, fast, reliable and low-cost mounting concept.This series has been extended with the Easy1B and Easy2B sizes for more flexibility with reduced height from 17 mm to 12 mm and injected screw clamps for mounting. The Econo family extends the power range from 15 A up to 300 A nominal current at600 V/650 V/1200 V/1700 V. The available configurations are the well-known EconoPIM™and EconoPACK™ series. The Econo housing features a copper base plate for optimizedheat spread and includes a thermistor (NTC). The Econo modules are available withsolderable pins or with PressFIT pins and an increasing number of Econo modules is available with pre-applied TIM already.Besides the standard planar IGBT chip technology for low switching losses, saturation voltage and high switching frequency, the Econo family also includes the optimized IGBT4 in 650 V/1200 V/1700 V. For ease of design, IGBTs with 10 μs short circuit robustness are now available in 650 V, 1200 V and 1700 V in the same mechanical design. Selected Econo modules feature integrated shunts for accurate and cost efficient current sensing.

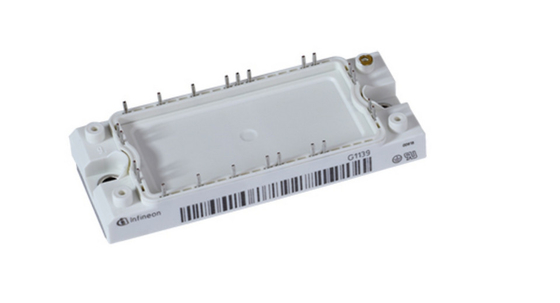

FS100R07N2E4 IGBT Module 100A 650V For Temperature Detection 0

2.Why choose us?

100% new and originao with Advantage price
High efficiency
Fast Delivery
Professional team service
10 Years Experience Electronic components
Electronic components Agent
Advantage logistic discount
Excellent After-sales Service
