|Place of Origin:||MEX|
|Brand Name:||Texas Instruments|

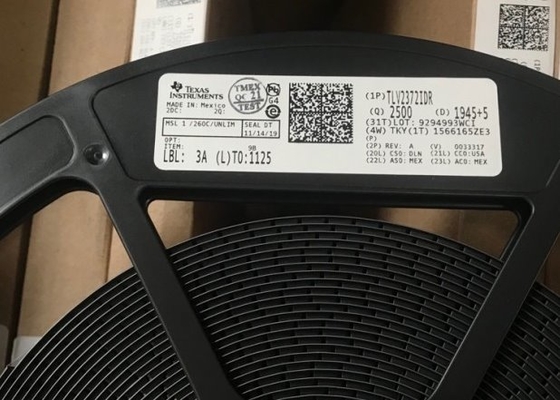

|Minimum Order Quantity:||2500pcs/box|
|Payment Terms:||T/T, Western Union|
|Manufacturer:||Manufacturer: Texas Instruments||Product Type:||Op Amps-Operational Amplifiers|
|Installation Style:||SMD/SMT||Package / Box:||SOIC-8|
|Number Of Channels:||2 Channel||Supply Voltage-max:||16 V|
|GBP-gain Bandwidth Product::||3 MHz||Output Current Per Channel:||16 MA|
|SR-Conversion Rate:||2.4 V / Us||Minimum Working Temperature:||-40C|
|Maximum Working Temperature:||+125c||Output Type:||Rail To Rail|
|Ib-Input Bias Current:||60PA||Working Power Supply Current:||550UA|
|Close:||No Shutdown||CMRR-Common Mode Rejection Ratio:||55 DB To 72 DB|
|En-input Voltage Noise Density:||39 NV / Sqrt Hz||Package:||REEL|
|Amplifier Type:||General Purpose Amplifier||Height:||1.58MM|
|Input Type:||Rail To Rail||Length:||4.9 Mm|
|Product:||Operational Amplifiers||Power Supply Type:||Single, Dual|
|Dual Supply Voltage:||+/- 3 V, +/- 5 V||In—input Noise Current Density:||0.0006 PA/sqrt Hz|
|Maximum Dual Supply Voltage:||+/- 8 V||Minimum Dual Supply Voltage:||+/- 1.35 V|
|Operating Power Supply Voltage:||2.7 V To 16 V, +/- 1.35 V To +/- 8 V||Pd-power Dissipation:||710 MW|
|PSRR-Power Supply Rejection Ratio:||70 DB||Factory Pack Quantity:||2500|
|Subcategory:||Amplifier ICs||Vcm-common Mode Voltage:||:Negative Rail To Positive Rail|
|Voltage Gain DB:||110 DB||Unit Weight:||170 Mg|
igbt driver module,
intelligent power module
TLV237x 500-µA/Ch, 3-MHz Rail-to-Rail Input and Output Operational Amplifiers With Shutdow
1 1 Features 1• Rail-to-Rail Input and Output • Wide Bandwidth: 3 MHz • High Slew Rate: 2.4 V/μs • Supply Voltage Range: 2.7 V to 16 V • Supply Current: 550 μA/Channel • Low-Power Shutdown Mode – IDD(SHDN): 25 μA/Channel • Input Noise Voltage: 39 nV/√Hz • Input Bias Current: 1 pA • Specified Temperature Range: – −40°C to +125°C (Industrial Grade) • Ultra-Small Packaging: – 5- or 6-Pin SOT-23 (TLV2370, TLV2371) – 8- or 10-Pin MSOP (TLV2372, TLV2373) 2 Applications • White Goods • Handheld Test Equipment • Portable Blood Glucose Systems • Remote Sensing • Active Filters • Industrial Automation • Battery-Powered Electronics Operational Amplifier 3 Description The TLV237x single-supply operational amplifiers provide rail-to-rail input and output capability. The TLV237x takes the minimum operating supply voltage down to 2.7 V over the extended industrial temperature range while adding the rail-to-rail output swing feature. The TLV237x also provides 3-MHz bandwidth from only 550 μA. The maximum recommended supply voltage is 16 V, which allows the devices to be operated from (±8-V supplies down to ±1.35 V) a variety of rechargeable cells. The CMOS inputs enable use in high-impedance sensor interfaces, with the lower voltage operation making an ideal alternative for the TLC227x in battery-powered applications. The rail-to-rail input stage further increases its versatility. The TLV237x is the seventh member of a rapidly growing number of RRIO products available from TI, and it is the first to allow operation up to 16-V rails with good ac performance. All members are available in PDIP and SOIC with the singles in the small SOT-23 package, duals in the MSOP, and quads in the TSSOP package. The 2.7-V operation makes the TLV237x compatible with Li-Ion powered systems and the operating supply voltage range of many micro-power microcontrollers available today including TI’s MSP430. Device Information(1) PART NUMBER PACKAGE BODY SIZE (NOM) TLV237x PDIP (8) 9.81 mm × 6.35 mm PDIP (14) 19.30 mm × 6.35 mm SOIC (8) 4.90 mm × 3.91 mm SOIC (14) 8.65 mm × 3.91 mm TSSOP (14) 5.00 mm × 4.40 mm TSSOP (16) SOT-23 (6) 2.90 mm × 1.60 mm SOT-23 (5) VSSOP (8) 3.00 mm × 3.00 mm VSSOP (10) (1) For all available packages, see the orderable addendum at the end of the data sheet.
To achieve the levels of high performance of the TLV237x, follow proper printed-circuit board design techniques. A general set of guidelines is given in the following. • Ground planes—TI highly recommends using a ground plane on the board to provide all components with a low inductive ground connection. However, in the areas of the amplifier inputs and output, the ground plane can be removed to minimize the stray capacitance. • Proper power supply decoupling—Use a 6.8-μF tantalum capacitor in parallel with a 0.1-μF ceramic capacitor on each supply terminal. It may be possible to share the tantalum among several amplifiers depending on the application, but a 0.1-μF ceramic capacitor should always be used on the supply terminal of every amplifier. In addition, the 0.1-μF capacitor must be placed as close as possible to the supply terminal. As this distance increases, the inductance in the connecting trace makes the capacitor less effective. The designer should strive for distances of less than 0.1 inches between the device power terminals and the ceramic capacitors. • Sockets—Sockets can be used but are not recommended. The additional lead inductance in the socket pins will often lead to stability problems. Surface-mount packages soldered directly to the printed-circuit board is the best implementation. • Short trace runs and compact part placements—Optimum high performance is achieved when stray series inductance has been minimized. To realize this, the circuit layout must be made as compact as possible, thereby minimizing the length of all trace runs. Pay particular attention to the inverting input of the amplifier. Its length must be kept as short as possible. This helps to minimize stray capacitance at the input of the amplifier. • Surface-mount passive components—Using surface-mount passive components is recommended for high performance amplifier circuits for several reasons. First, because of the extremely low lead inductance of surface-mount components, the problem with stray series inductance is greatly reduced. Second, the small size of surface-mount components naturally leads to a more compact layout thereby minimizing both stray inductance and capacitance. If leaded components are used, TI recommends that the lead lengths be kept as short as possible.
